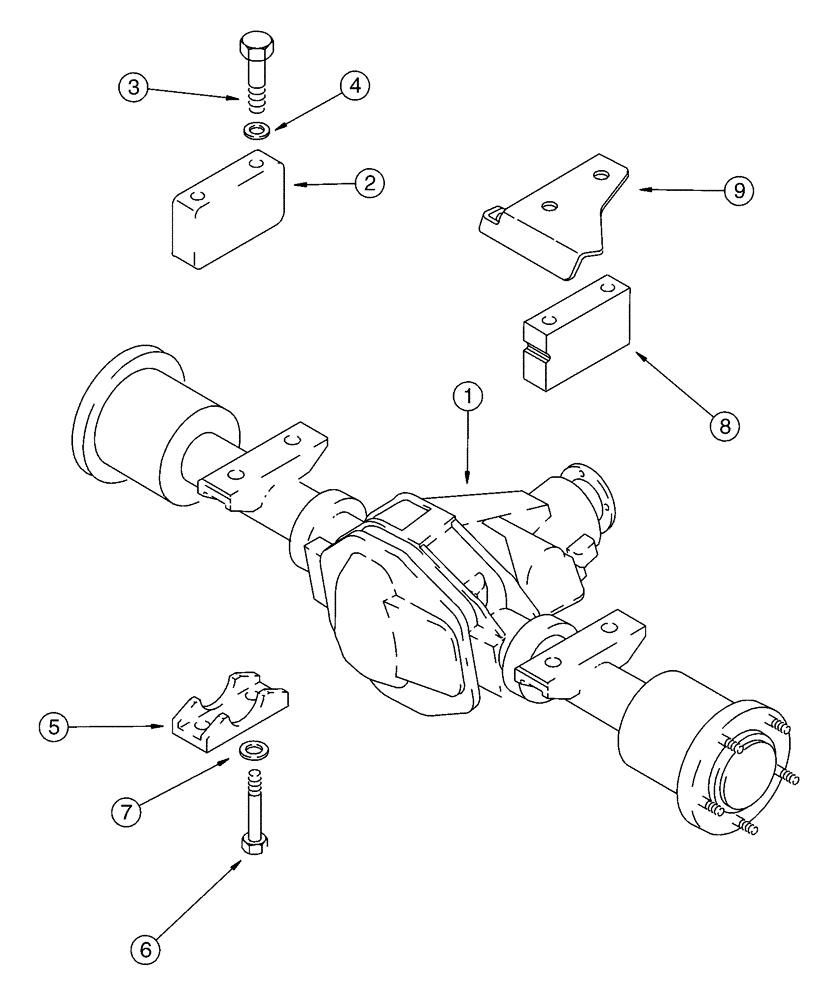

Запчасти Case 460 (6-30) - DRIVE LINE MOUNTING, REAR AXLE (06) - POWER TRAIN

1

139020A1

AXLE

ASSEMBLY - rear rigid, 5.38 gear ratio, parts list figures 6-50 - 6-56, Start Serial: JAF0117840

1шт.

1a

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, not shown, parts list figures 6-58 - 6-70

1шт.

2

128657A1

SPACER

- axle mounting, two required for rigid axle, 1 required for left hand side of steerable axle

1-2шт.

3

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

- hex, 1 NC x 2 inch

4шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

4шт.

5

128567A1

PAD

- axle mounting

2шт.

6

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

4шт.

8

187815A1

MOUNTING PARTS

SPACER - axle mounting, models with steerable axle, right-hand side

1шт.

9

187816A1

GUARD

- cable, models with steerable axle, right-hand side

1шт.
