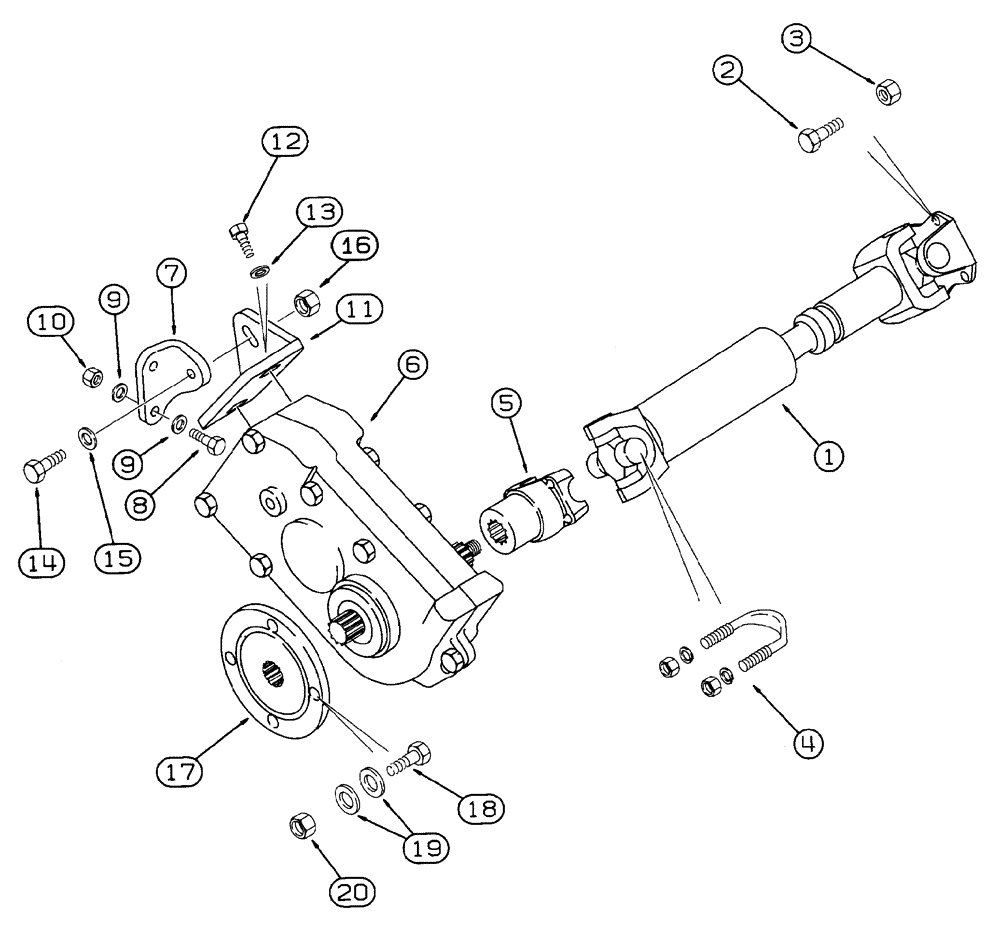

Запчасти Case 460 (6-26) - DRIVE LINE MOUNTING, FRONT DRIVE SHAFT, TRANSMISSION, AND REAR FLANGE (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front, see figure 6-34 for correct drive shaft

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, used with 115816A1 and 139021A1 axles, see Ref. 11 in figure 6-34

4шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used with 195520A1 axle, see Ref. 11A in figure 6-34 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

3

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Used with 413-620 bolt 3/8"-16, GC

4шт.

3

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Used with 413-824 bolt 1/2"-13, GC

4шт.

4

H183566

BOLT

U-BOLT ASSEMBLY - special, includes hardware

2шт.

5

H208488

YOKE

- transmission, to drive shaft

1шт.

6

120048A1

CASE

TRANSMISSION ASSEMBLY - ground drive, single speed, parts list figure 6-32

1шт.

7

124126A1

ANGLE

- mounting, transmission

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

124127A1

SUPPORT

BRACKET - mounting, transmission

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

2шт.

16

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

17

134004A1

FLANGE

- companion

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

19

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

18

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

4шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

20

232-4618

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

4шт.
