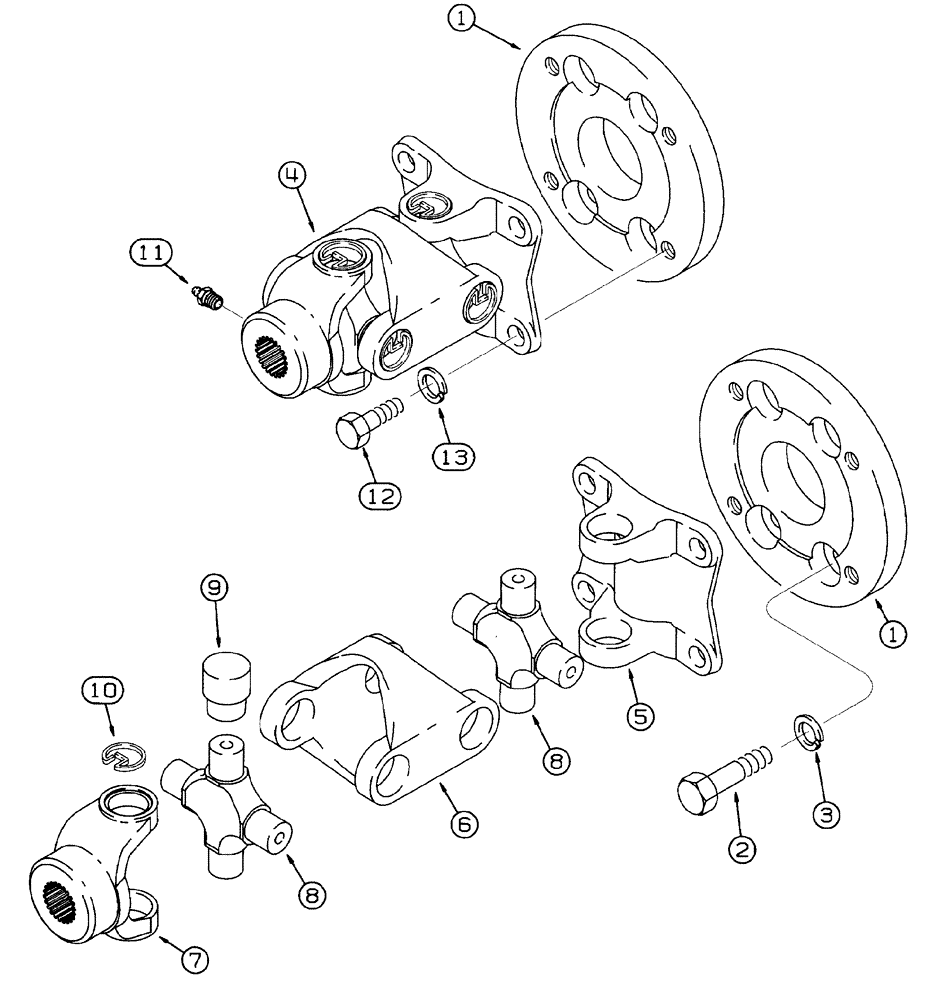

Запчасти Case 460 (6-24) - TANDEM PUMP DRIVE (06) - POWER TRAIN

1

115718A1

PLATE

- pump drive, includes: Refs. 5 - 11

1шт.

2

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

D64444

JOINT

ASSEMBLY - universal, pump drive

1шт.

5

D70624

YOKE

- flanged

1шт.

6

D70626

YOKE

CARRIER - universal joint assembly

1шт.

7

D70625

YOKE

- pump end, includes: Refs. 8 - 11

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint

2шт.

8

NSS

NOT SOLD SEPARAT

CROSS - universal

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - universal

4шт.

10

11256

SNAP RING

- retaining, bearing, bearing

4шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch, straight

1шт.

12

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

13

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
