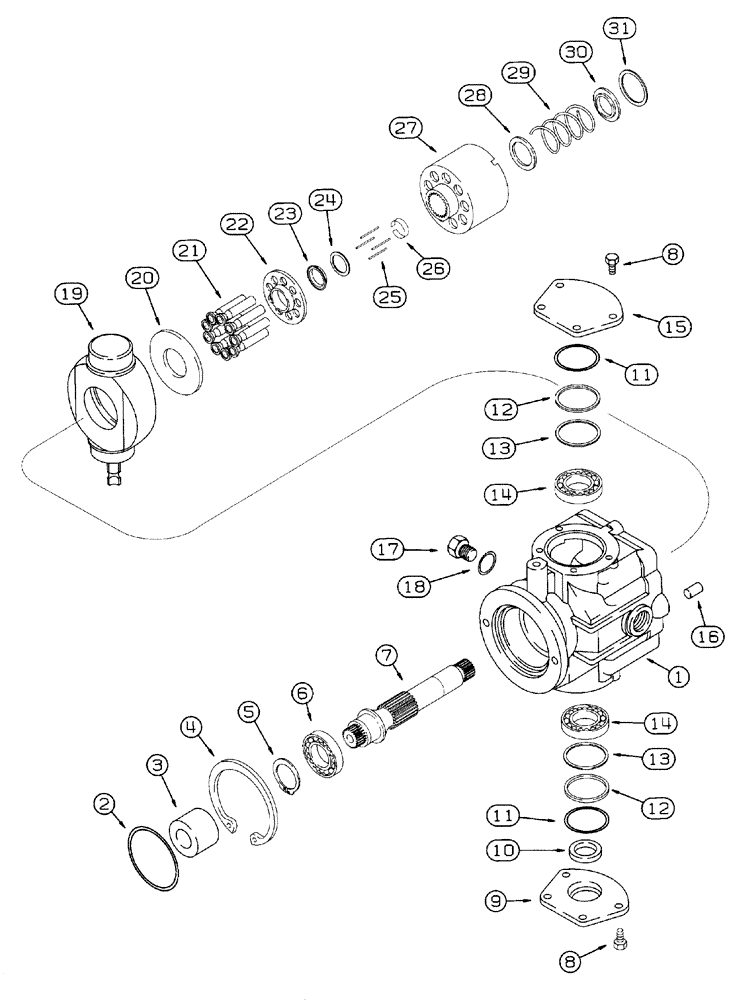

Запчасти Case 460 (6-22) - TANDEM PUMP ASSEMBLY, 113598A1, REAR DRIVE PUMP, HOUSING, INPUT SHAFT, AND PISTON BLOCK (06) - POWER TRAIN

113598A1

PUMP

ASSEMBLY - tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting, includes: Refs. 1 - 31

1шт.

1

132386A1

HOUSING

- tandem pump, rear

1шт.

2

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

3

124846A1

SPLINED COUPLING

COUPLING - shaft

1шт.

4

103-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

5

C14297

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

6

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING - ball

1шт.

7

132360A1

SHAFT

- pump, 15 teeth, rear

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

8шт.

9

H438311

COVER

CARRIER - housing, trunnion seal

1шт.

10

H438288

SEAL

- lip

1шт.

11

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

Housing to cover Rect, 2.612" ID x 2.8" OD, Cl 5

2шт.

12

H438309

SPACER

- bearing

2шт.

13

132383A1

BLOCK

KIT - shim, trunnion

2шт.

14

H438304

BEARING

- tapered roller

2шт.

15

H438310

COVER

- housing

1шт.

16

F23124

AXLE PIN

PIN - locating, end cap

2шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

124831A1

PLATE

- swash, pistons

1шт.

20

100700A1

PLATE

- thrust

1шт.

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, includes: Refs. 21 - 31

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - retainer

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - retainer

4шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

27

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.
