(6-20) - TANDEM PUMP ASSEMBLY, 113598A1, REAR DRIVE PUMP, END CAP AND RELIEF VALVES

Запчасти Case 460 (6-20) - TANDEM PUMP ASSEMBLY, 113598A1, REAR DRIVE PUMP, END CAP AND RELIEF VALVES (06) - POWER TRAIN

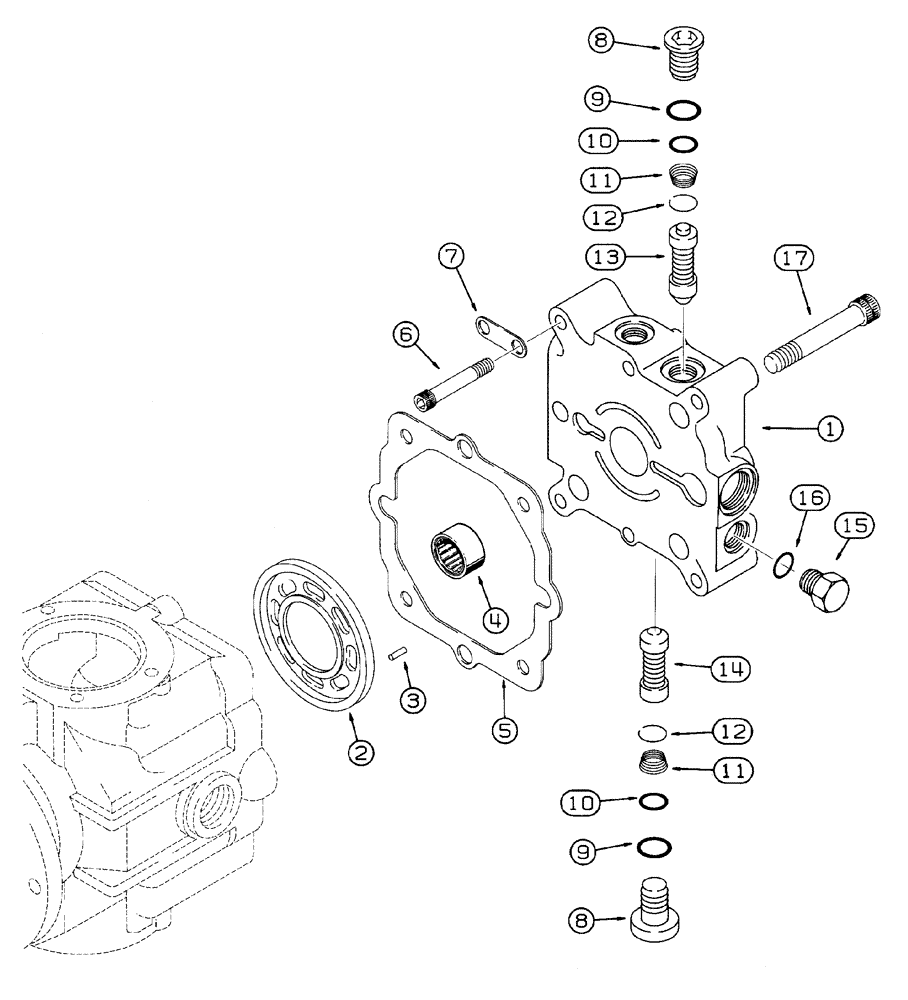

Схема запчастей Case 460 - (6-20) - TANDEM PUMP ASSEMBLY, 113598A1, REAR DRIVE PUMP, END CAP AND RELIEF VALVES (06) - POWER TRAIN
10
9
16
12
14
7
15
2
3
8
11
6
9
8
12
17
4
12
13
10
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

113598A1

PUMP

tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting, includes: Refs. 1 - 17

1шт.

1

132379A1

CAP

- end, tandem pump, rear

1шт.

2

132370A1

LARGE PLATE

PLATE - valve

1шт.

3

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

4

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

5

124826A1

GASKET

- end cap

1шт.

6

132357A1

HEX SOC SCREW

SCREW - hex socket head, special

4шт.

7

100703A1

PLATE, SPACER

BRACKET - lifting

1шт.

8

H438301

PLUG

- relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

11

N14435

SPRING

- relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

12

H438302

RING

- retaining, relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

13

132388A2

VALVE

- relief, 175 bar/2538 psi

1шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

14

108194A1

VALVE

- relief, 345 bar/5000 psi

1шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

15

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 16 Hex Hd, 9/16"-18 ORB

1шт.

17

106564A1

SCREW

- hex socket head, special

4шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
