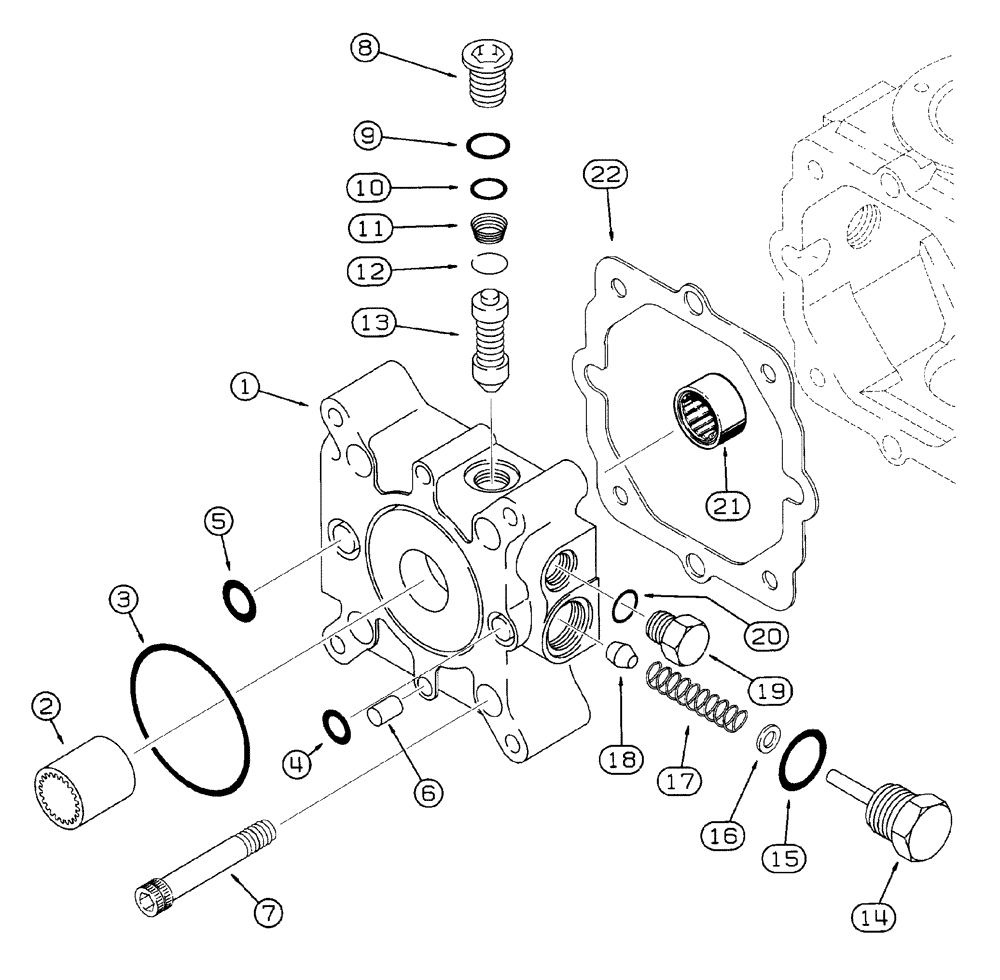

Запчасти Case 460 (6-18) - TANDEM PUMP ASSEMBLY, 113598A1, FRONT DRIVE PUMP, END CAP AND RELIEF VALVES (06) - POWER TRAIN

113598A1

PUMP

ASSEMBLY - tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting, includes: Ref. 1 - 22

1шт.

1

132380A1

CAP

- end, front pump

1шт.

2

132375A1

SPLINED COUPLING

COUPLING - tandem pump

1шт.

3

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

5

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

6

F23124

AXLE PIN

PIN - locating

2шт.

7

106564A1

SCREW

- hex socket head, special

4шт.

8

H438301

PLUG

- relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

11

N14435

SPRING

- relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

12

H438302

RING

- retaining, relief valve

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

13

132381A2

VALVE

- relief (280 bar/4060 psi)

2шт.

Effective with pumps built after 96-40-XXXXX can not be serviced since new design does not allow disassembly.

1шт.

14

H438295

PLUG

- charge relief

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

132377A1

BLOCK

KIT - shim

1шт.

17

H438299

SPRING

- compression, plug

1шт.

18

H438300

POPPET

POPPET - plug, charge relief

1шт.

19

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 20 Hex Hd, 9/16"-18 ORB

1шт.

21

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

22

124826A1

GASKET

- end cap

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
