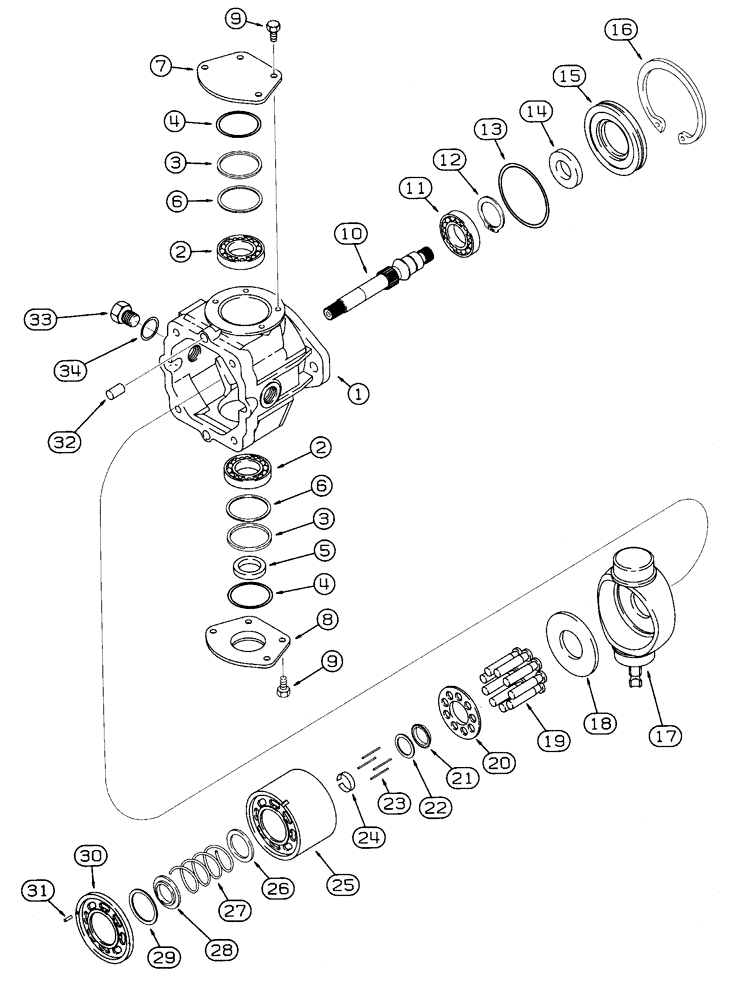

Запчасти Case 460 (6-16) - TANDEM PUMP ASSEMBLY, 113598A1, FRONT DRIVE PUMP, HOUSING, INPUT SHAFT AND PISTON BLOCK (06) - POWER TRAIN

113598A1

PUMP

ASSEMBLY - tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting, includes: Refs. 1 - 33

1шт.

1

117378A1

HOUSING

- pump, input shaft emd

1шт.

2

H438304

BEARING

- tapered roller

2шт.

3

H438309

SPACER

- bearing

2шт.

4

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

Housing to cover Rect, 2.612" ID x 2.8" OD, Cl 5

2шт.

5

H438288

SEAL

- lip

1шт.

6

132383A1

BLOCK

KIT - shim, trunnion

2шт.

7

H438310

COVER

- housing

1шт.

8

H438311

COVER

CARRIER - housing

1шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

10

132358A1

SHAFT

- 15 teeth, pump input

1шт.

11

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING - ball

1шт.

12

C14297

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

13

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

1шт.

14

100699A1

SEAL

- lip

1шт.

15

100704A1

CARRIER FLANGE SEAL

CARRIER - seal

1шт.

16

103-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

17

124831A1

PLATE

- swash, pistons

1шт.

18

100700A1

PLATE

- thrust, includes: Refs. 19 - 29

1шт.

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - retainer

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - retainer

4шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

29

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

30

132362A1

LARGE PLATE

PLATE - valve

1шт.

31

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

32

F23124

AXLE PIN

PIN - locating, valve block

2шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 34 Hex Soc, 1 1/16"-12 ORB

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
