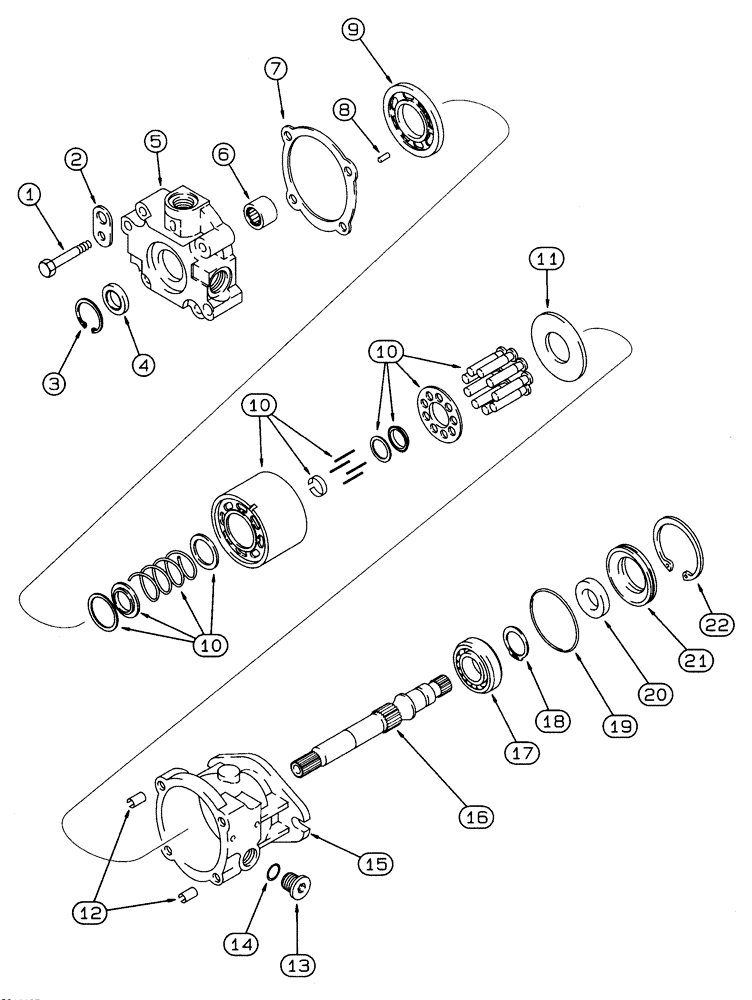

Запчасти Case 460 (6-14) - GROUND DRIVE MOTOR ASSEMBLY, 125364A1 (06) - POWER TRAIN

125364A1

MOTOR

ASSEMBLY - ground drive, includes: Refs. 1 - 22

1шт.

1

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 - 1.5 x 70 mm, class 10.9

4шт.

2

100703A1

PLATE, SPACER

BRACKET - lifting

1шт.

3

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

4

H438288

SEAL

- lip, shaft

1шт.

5

132395A1

CAP

COVER - ground drive motor

1шт.

6

132391A1

BEARING, NEEDLE

BEARING - needle, shaft

1шт.

7

100701A1

GASKET

- cover

1шт.

8

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

9

100702A1

LARGE PLATE

PLATE - valve

1шт.

10

100706A1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, component parts not serviced separately

1шт.

11

100700A1

PLATE

- thrust

1шт.

12

N13994

SPACER

PIN - roll, special, cover locating

2шт.

13

86625138

PLUG,7/18" - 14

Includes Ref. 13 Hex Soc, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

100698A1

HOUSING

- motor

1шт.

16

132393A1

SHAFT

- ground drive motor

1шт.

17

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

BEARING - ball

1шт.

18

C14297

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

19

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

1шт.

20

100699A1

SEAL

- shaft

1шт.

21

100704A1

CARRIER FLANGE SEAL

CARRIER - seal

1шт.

22

103-21300

SNAP RING,3.00", Int, #300

Ring, Snap, , Seal 3.00", Int, #300

1шт.
