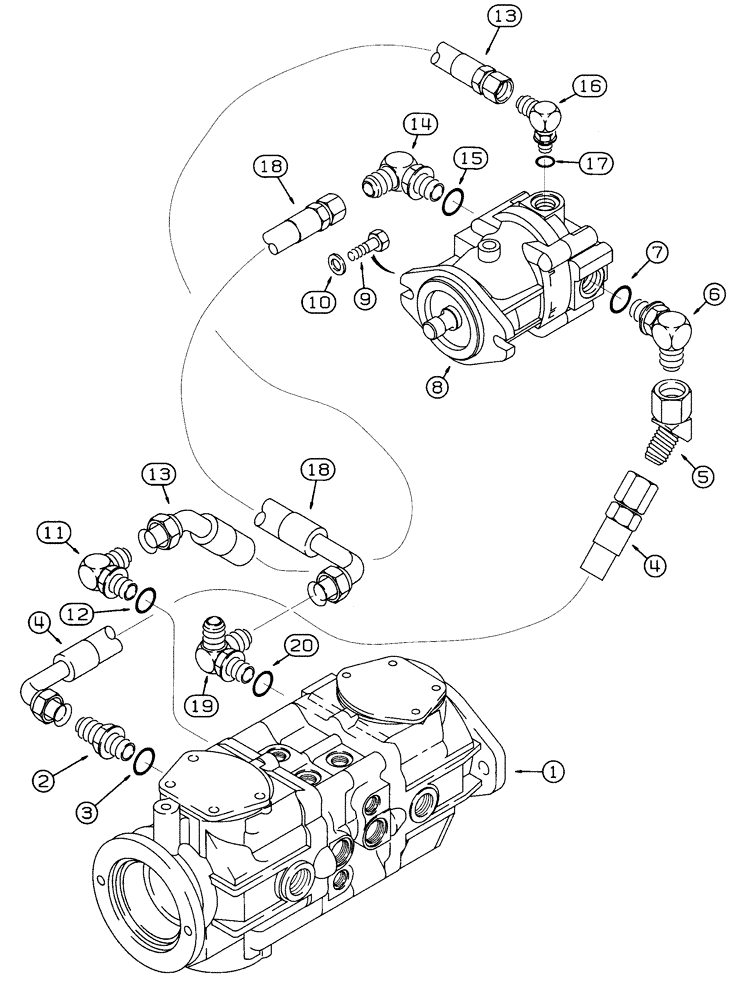

Запчасти Case 460 (6-12) - GROUND DRIVE HYDRAULIC CIRCUIT, TANDEM PUMP TO GROUND DRIVE MOTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
113598A1
PUMP
ASSEMBLY - tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting
1шт.
2
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, includes: Ref. 3
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
4
120422A1
HOSE ASSY.
HOSE - 730 mm (28-3/4 inch) long, tandem pump to ground drive motor, high loop
1шт.
5
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
- 45 degree, 7/8-14 inch flare x swivel
1шт.
6
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring boss, includes: Ref. 7
1шт.
7
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
8
125364A1
MOTOR
ASSEMBLY - ground drive, parts list figure 6-14
1шт.
9
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
2шт.
10
496-21053
WASHER,17/32" x 1 1/16" x .134"
- flat, 17/32 x 1-1/16 x 1/8 inch, hardened
2шт.
11
119212A1
ELBOW
- 90 degree, special (forged body), includes: Ref. 12
1шт.
12
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
13
120423A1
HOSE ASSY.
HOSE - 730 mm (28-3/4 inch) long, tandem pump to ground drive motor, low loop
1шт.
14
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring boss
1шт.
15
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
16
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x adj O-ring boss, includes: Ref. 17
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
18
135860A1
HOSE ASSY.
HOSE - 285 mm (285-3/4 inch) long, ground drive motor to tandem pump case drain
1шт.
19
124915A1
TEE
- special, includes: Ref. 20
1шт.
20
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
Выбрано товаров: 20
