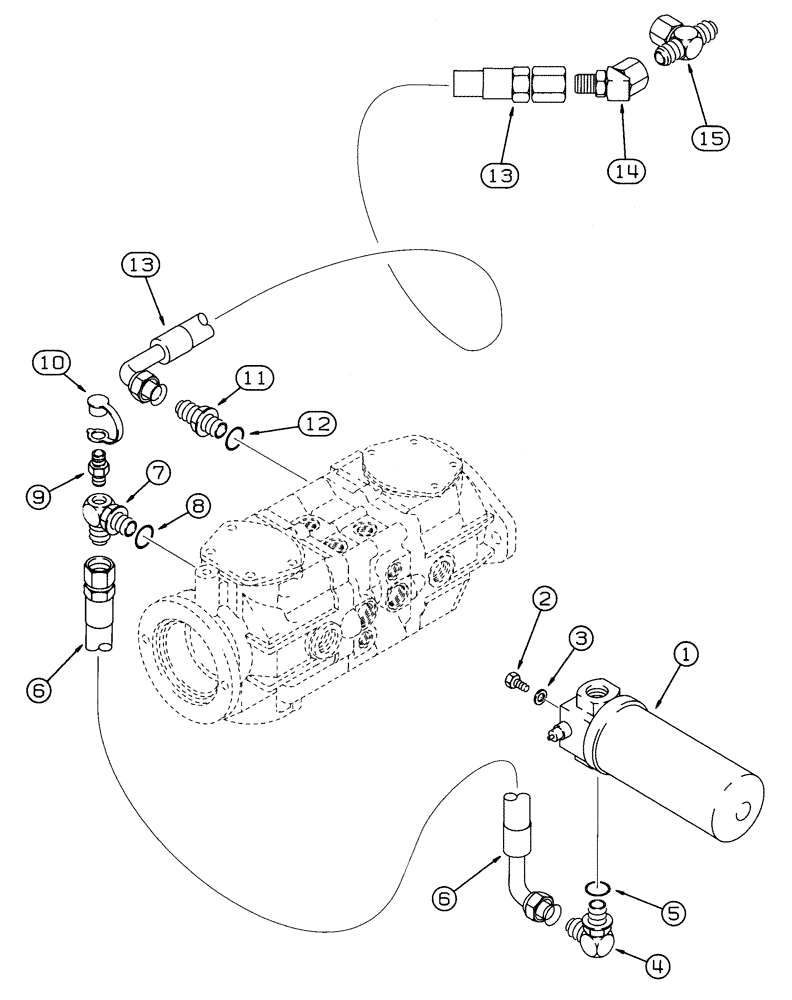

Запчасти Case 460 (6-10) - GROUND DRIVE HYDRAULIC CIRCUIT, CHARGE FILTER TO TANDEM PUMP AND TANDEM PUMP TO OIL COOLER TEE (06) - POWER TRAIN

1

D125507

FILTER

ASSEMBLY - hydraulic oil, charge and return, parts list figure 8-18

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

4

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1-5/16"-12 adj O-ring boss, Incl. Ref 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

120435A1

HOSE ASSY.

HOSE - 381 mm (15 inch) long, charge and return filter to tandem pump

1шт.

7

106587A1

ELBOW

- 90 degree, special, includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

H434164

COUPLING

COUPLER - quick check, diagnostic

1шт.

10

H434163

DUST CAP

CAP - dust, diagnostic coupler

1шт.

11

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

138894A1

HOSE ASSY.

HOSE - 850 mm (33-1/2 inch) long, tandem pump to oil cooler, see figure 8-4 for complete oil cooler hydraulic circuit

1шт.

14

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel

1шт.

15

218-582

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4 female PT branch x 1-5/16-12 inch flare x flare

1шт.
