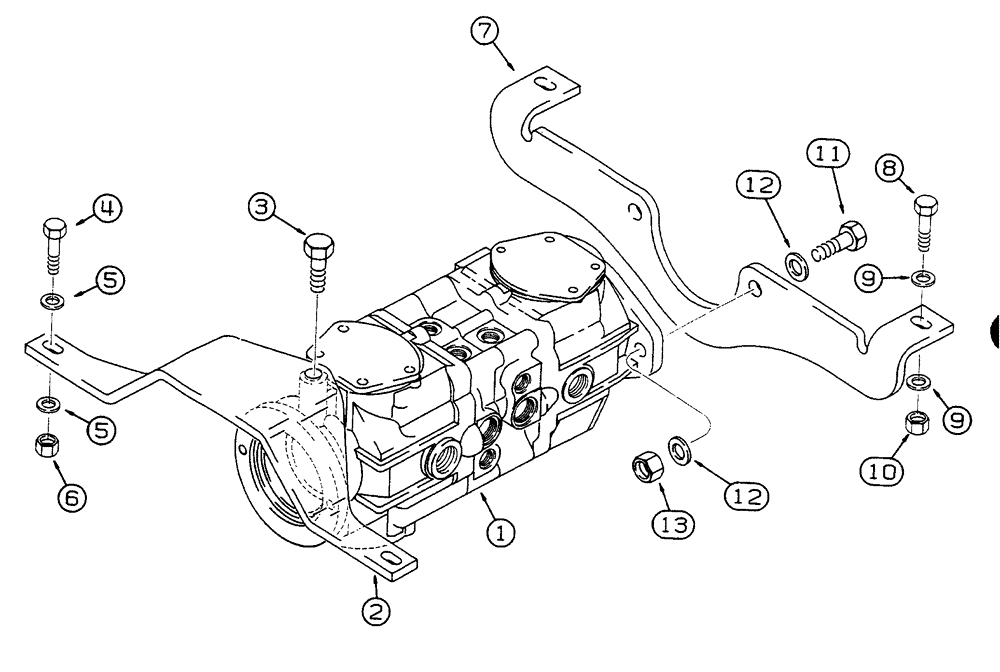

Запчасти Case 460 (6-08) - TANDEM PUMP MOUNTING (06) - POWER TRAIN

1

113598A1

PUMP

ASSEMBLY - tandem, parts list figures 6-16 - 6-22

1шт.

2

120169A1

BRACKET

- mounting, rear, tandem pump

1шт.

3

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

120164A1

BRACKET

- mounting, front, tandem pump

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

10

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

13

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
