(5-12) - PRIORITY FLOW DIVIDER VALVE ASSEMBLY, H672904

Запчасти Case 460 (5-12) - PRIORITY FLOW DIVIDER VALVE ASSEMBLY, H672904 (05) - STEERING

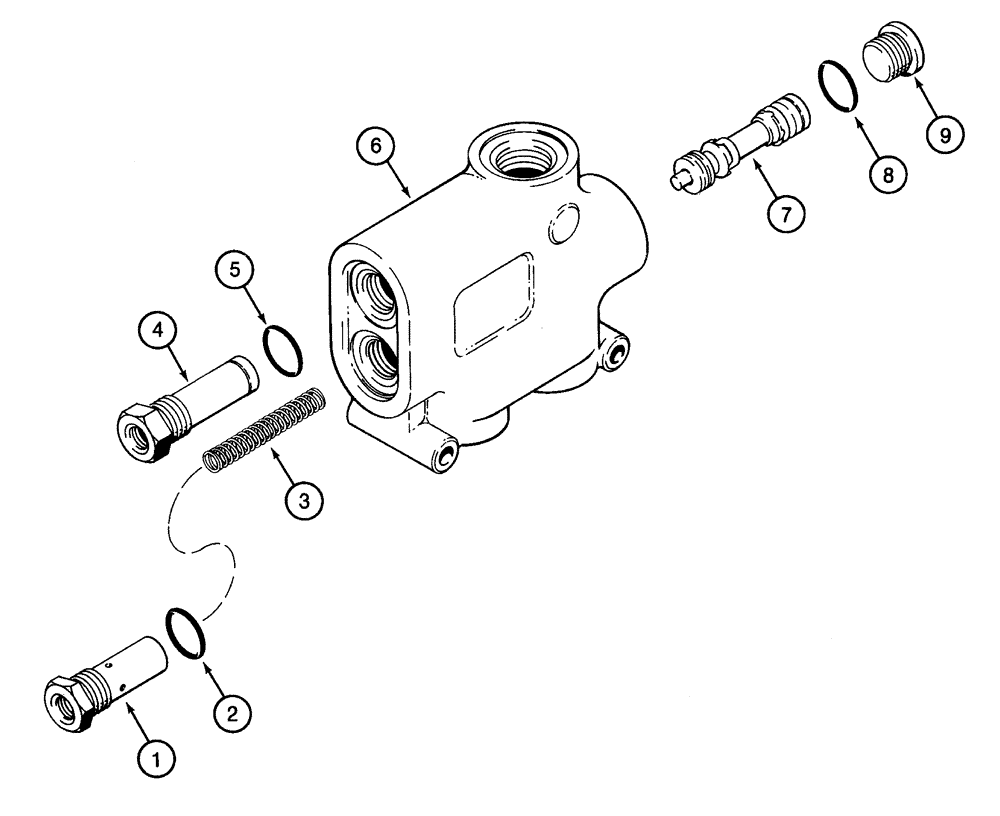

Схема запчастей Case 460 - (5-12) - PRIORITY FLOW DIVIDER VALVE ASSEMBLY, H672904 (05) - STEERING
3
6
2
1
5
9
4
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672904

VALVE

ASSEMBLY - priority flow divider, includes: Refs. 1 - 9

1шт.

1

H436408

PLUG

- retaining, spool spring

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

H436365

SPRING

- spool, includes: Refs. 4 and 5

1шт.

N7163

CARTRIDGE

VALVE ASSEMBLY - relief

1шт.

4

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H436407

BODY

- priority flow divider valve

1шт.

7

H436366

SPOOL

- valve

1шт.

H436367

PLUG

ASSEMBLY - spool end, includes: Refs. 8 and 9

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - spool end

1шт.
