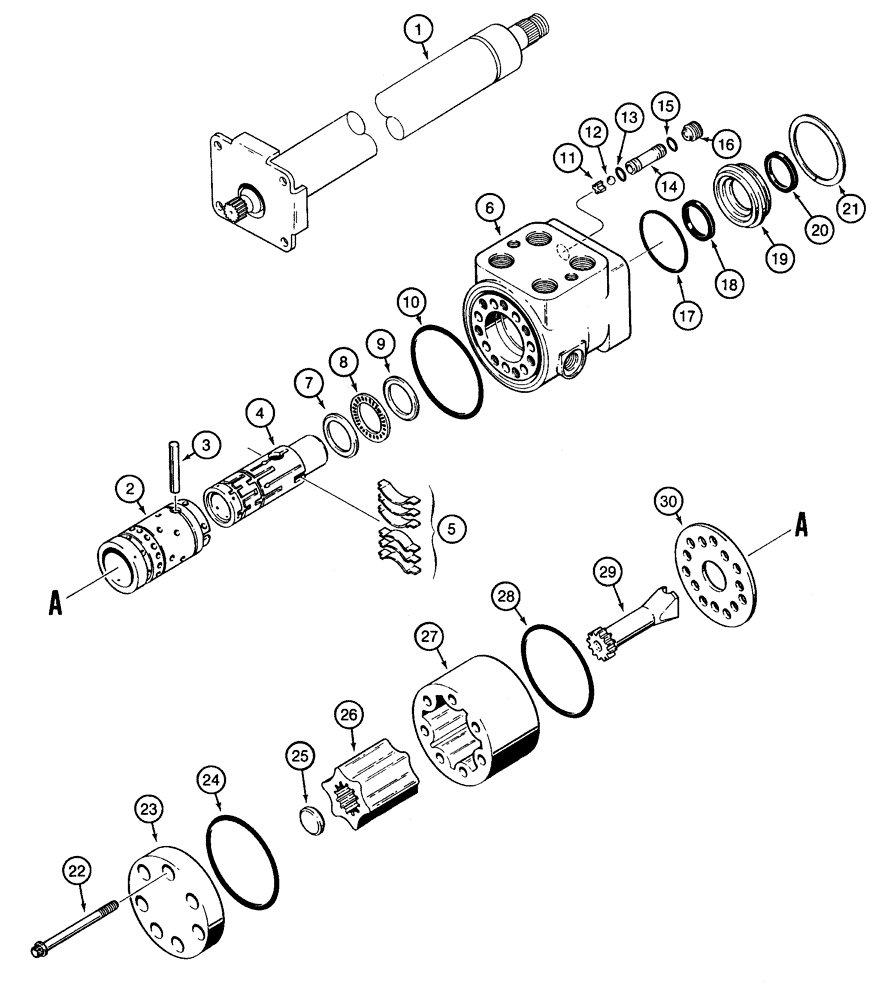

Запчасти Case 460 (5-10) - STEERING COLUMN AND VALVE (05) - STEERING

1

H672220

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately, includes: Ref. 1A

1шт.

1a

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

BOLT - 12 point flange, 3/8 NC x 3/4 inch, grade 8, Included with steering column, not shown, assembly

2шт.

H672219

VALVE

ASSEMBLY - steering control, includes: Ref. 2 - 30

1шт.

S115563

BODY

CONTROL ASSEMBLY - valve, body and spool,steering - H672219, includes: Refs. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - spool, steering control valve assembly - H672219

1шт.

3

L30888

PIN

- roll, steering control valve assembly - H672219

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, steering control valve assembly - H672219

1шт.

5

L30889

SPRING

- spool, steering control valve assembly - H672219

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - steering control valve, assembly - H672219

1шт.

135878A1

KIT

- centering spring, spool, steering control valve assembly - H672219

1шт.

7

D82804

RACE

- thrust, bearing, steering control valve assembly - H672219

1шт.

8

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller, Steering Control Valve Assy - H672219

1шт.

9

D82804

RACE

- thrust, bearing, steering control valve assembly - H672219

1шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- valve body, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

11

L35368

RETAINER

- check ball, steering control valve assembly - H672219

1шт.

12

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24, steering control valve assembly - H672219

1шт.

13

L30893

O-RING,1/16" Thk x 5/16" ID

- 5/16 ID x 1/8 inch wide, seat, inner, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

14

D82806

VALVE SEAT

SEAT - ball, steering control valve assembly - H672219

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

16

D82805

SET SCREW

SCREW - set, body, steering control valve assembly - H672219

1шт.

17

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Steering control valve assembly - H672219 -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of Seal Kit P/N D82802

1шт.

18

201893H1

SEALING RING

SEAL - square section, gland, outer, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

19

S110170

BUSHING

GLAND - seal, spool, steering control valve assembly - H672219

1шт.

20

697494R91

OIL SEAL

SEAL - 1 inch ID, gland, outer, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

21

S110169

WASHER

RING - retaining, gland, steering control valve assembly - H672219

1шт.

22

H189555

BOLT,M6 x 20mm, Cl 8.8

- 12 point, special, steering control valve assembly - H672219

7шт.

23

D82809

COVER

CAP - end, steering control valve assembly - H672219

1шт.

24

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- end cap, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

25

K964246

SPACER

- drive shaft, steering control valve assembly - H672219

1шт.

N13342

GEAR-SET

GEROTOR - set, steering control valve, assembly - H672219, includes: Refs. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve, assembly - H672219

1шт.

27

NSS

NOT SOLD SEPARAT

STATOR - steering control valve, assembly - H672219

1шт.

28

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- stator, steering control valve assembly - H672219

1шт.

Part of Seal Kit P/N D82802

1шт.

29

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, steering control valve assembly - H672219

1шт.

30

S113037

PLATE

- spacer, steering control valve assembly - H672219

1шт.

D82802

SEAL PACKAGE

KIT - seal, seal replacement, includes Refs. 10, 13, 15, 17, 18, 20, 24, and 28

1шт.
