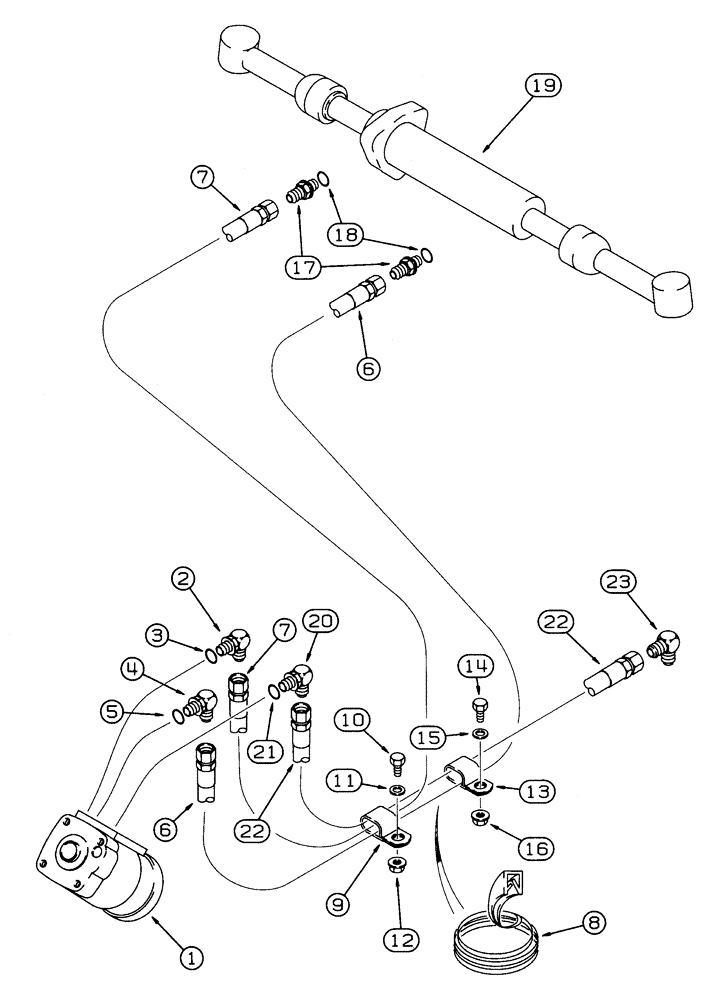

Запчасти Case 460 (5-08) - FRONT STEERING HYD. CIRCUIT, CNTRL. VALVE TO FRONT STEERING CYL. & CNTRL. VALVE TO BACKHOE BULKHEAD (05) - STEERING

1

H672219

VALVE

ASSEMBLY - steering control, parts list figure 5-10

1шт.

2

700701358

ELBOW

- 90 degree long, 3/4-16 flare x adj. O-ring boss, includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

107764A1

HOSE

- 1330 mm (52-3/8 inch) long, steering control valve to front steering cylinder, right-hand port

1шт.

7

112989A1

HOSE

- 1536 mm (60-1/2 inch) long, steering control valve to front steering cylinder, left-hand port

1шт.

8

D49094

LINING

TRIM - edge, 268 mm (10-1/2 inch) long, cut from F42827 bulk trim, see below

1шт.

9

A180154

CLAMP

- P-type, hose

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- P-type, 5/8 inch diameter, double

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 18

1шт.

19

130155A1

CYLINDER ASSY.

Cylinder Assembly - steering, front, included with 115816A1 axle assembly, parts list figure 6-40

1шт.

20

700701358

ELBOW

- 90 degree long, 3/4-16 flare x adj O-ring boss, includes: Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

107888A1

HOSE

- 1245 mm (49 inch) long steering control valve to backhoe bulkhead

1шт.

23

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
