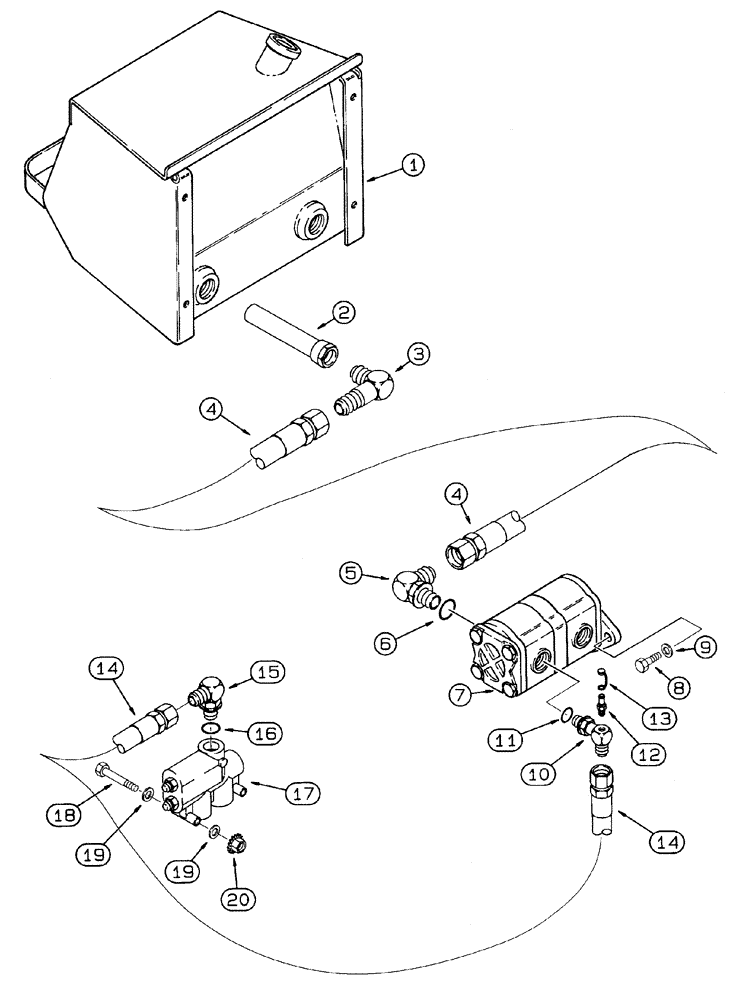

Запчасти Case 460 (5-04) - FRONT STEERING HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND DUAL PUMP TO PRIORITY FLOW DIVIDER (05) - STEERING

1

116194A1

RESERVOIR ASSY.

RESERVOIR - hydraulic oil

1шт.

2

H151399

FILTER STRAINER

SCREEN - filter

1шт.

3

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT

1шт.

4

H438540

HOSE

- 670 mm (26-3/8 inch) long, suction, reservoir to dual pump

1шт.

5

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

111941A1

PUMP

ASSEMBLY - dual, complete assembly, contains no serviceable internal components - with the exception of internal seals, and items indented directly below, for replacement seals order 139447A1 seal kit, see below

1шт.

140213A1

BOLT,Hex, 3/8" x 157mm

- hex, 3/8 NC x 6-3/16 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

106587A1

ELBOW

- 90 degree, special, includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

H434164

COUPLING

COUPLER - quick check, diagnostic

1шт.

13

H434163

DUST CAP

CAP - dust

1шт.

14

107761A1

HOSE

- 720 mm (28-3/8 inch) long, dual pump to priority flow divider

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

H672904

VALVE

ASSEMBLY - priority flow divider, parts list figure 5-12

1шт.

18

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

139447A1

SEAL KIT

KIT - dual pump seal replacement, includes all seals and O-rings used in 111941A1 dual pump assembly

1шт.
