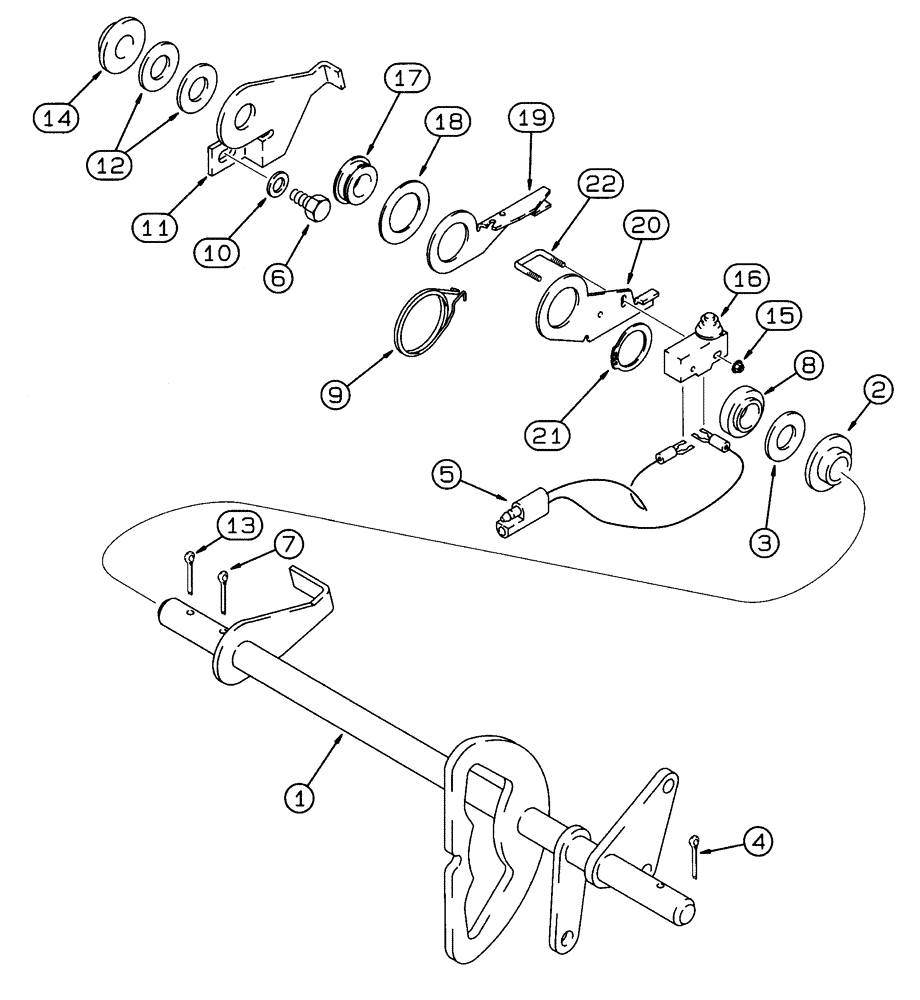

Запчасти Case 460 (4-18) - NEUTRAL START SWITCH AND MOUNTING, GROUND DRIVE CONTROL (04) - ELECTRICAL SYSTEMS

1

121438A1

SHAFT

- control, ground drive

1шт.

See figure 6-2 for ground drive controls from hand control lever to ground drive control shaft.

1шт.

2

D128616

BUSHING

- plastic

1шт.

3

495-11081

WASHER,3/4", SAE

1шт.

4

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

5

H436183

CONNECTOR, ELEC

WIRE - connector, Serial Range: switch-harness

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

7

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

8

H435881

HUB

SPACER - actuator plate

1шт.

9

H436231

SPRING

- switch contact plate

1шт.

10

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

1шт.

11

H436230

LARGE PLATE

PLATE - centering

1шт.

12

495-11081

WASHER,3/4", SAE

1шт.

13

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

14

D128616

BUSHING

- plastic

1шт.

15

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

1шт.

16

H435820

SWITCH

- neutral start, includes terminal hardware

1шт.

H673263

MOUNTING PARTS

MOUNT ASSEMBLY - switch, neutral start, includes: Refs. 17 - 21

1шт.

17

H435800

HUB

- switch contact plate

1шт.

18

H257915

SHIM,0.813mm Thk

(.031") 0.813mm Thk

3шт.

19

H436226

CONTACT PLATE

PLATE - switch contact

1шт.

20

H436227

PLATE

- switch mounting

1шт.

21

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

22

H435814

U-BOLT

- switch mounting

1шт.
