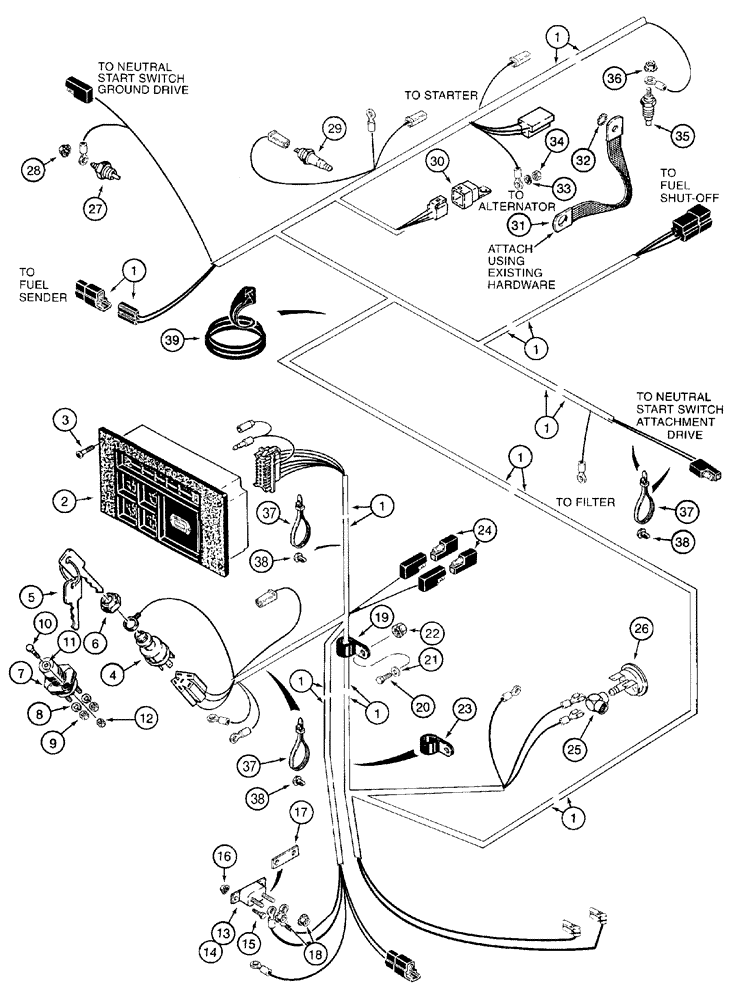

Запчасти Case 460 (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, WITHOUT SEAT INTERLOCK SYSTEM (04) - ELECTRICAL SYSTEMS

1

123220A2

HARNESS

- wiring, main

1шт.

2

116738A1

CLUSTER

ASSEMBLY - instrument, 12 volt, parts list figure 4-12

1шт.

3

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, includes: Refs. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - ignition, without keys

1шт.

5

A77313

SET OF 2 KEYS

KEY - set of two, ignition; metal without padding

1шт.

6

A77314

NUT

- hex, special, ignition switch mounting

1шт.

H35048

IGNITION SWITCH

SWITCH ASSEMBLY - glow plug, includes: Refs. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SWITCH - glow plug, on/off

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

11

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

12

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

13

L104329

BREAKER

- circuit, 15 amp

1шт.

14

A22877

BREAKER,40A

- circuit, 40 amp

1шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

4шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

4шт.

17

1301157C1

BAR

- breaker bus

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

4шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

24

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

2шт.

25

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8 inch female PT x female PT

1шт.

26

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

27

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - hydraulic oil temperature

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

29

1959159C1

PRESSURE SWITCH

SWITCH - engine oil pressure

1шт.

30

1983394C1

RELAY

- electrical, starter

1шт.

31

D127018

STRAP

- ground

1шт.

32

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

825-1406

NUT,M6, Cl 8

1шт.

35

128677A1

SENDER UNIT

SENDER - water temperature

1шт.

36

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

38

H438377

BUTTON

MOUNT - retaining strap

3шт.

39

D49094

LINING

TRIM - edge268 mm (10-1/2 inch) long, cut from F42827 bulk trim, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, biulk, 2946 mm (116 inch) long

1шт.
