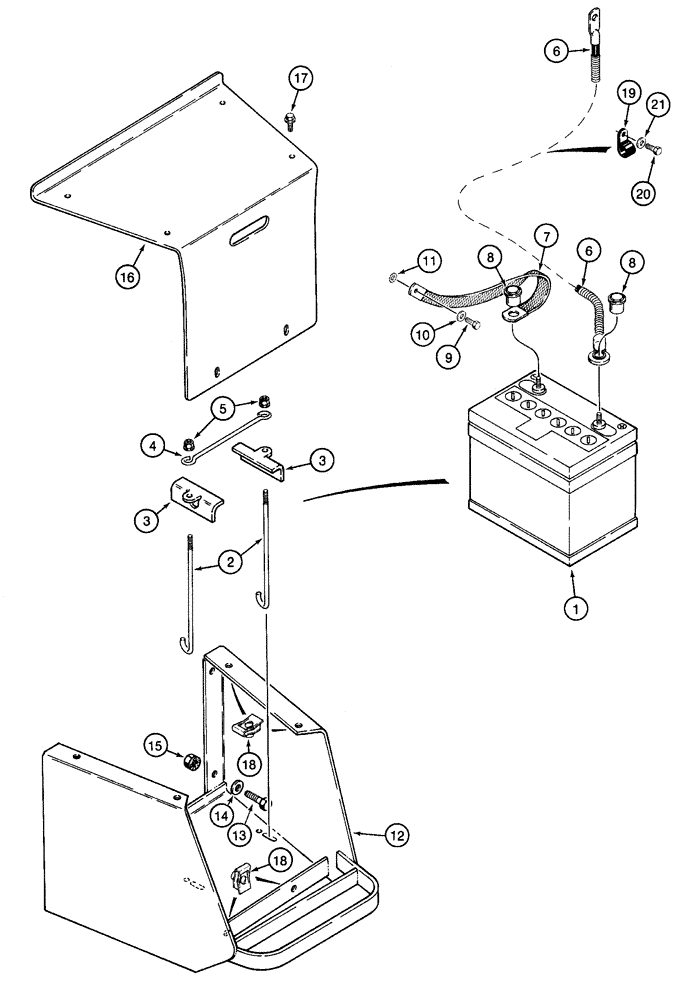

Запчасти Case 460 (4-08) - BATTERY, MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

BMF28S

BATTERY, DRY

BATTERY - dry charged, 12 volt, service replacement for D128393 battery

1шт.

2

H436311

BOLT

- J-type, special, battery hold-down

2шт.

3

D125079

BRACKET

- battery hold-down

2шт.

4

D135073

BRACKET

ROD - battery hold-down

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

127381A1

CABLE

- battery, positive

1шт.

7

D140369

GROUND STRAP,260mm L

STRAP - battery, negative ground

1шт.

8

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

- hex, special, 3/8 inch NC, battery terminal

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

11

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

12

116358A1

BOX

- battery and oil filter, includes step

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

116380A1

COVER

- battery and oil filter box

1шт.

17

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

18

H346650

NUT

- U-type, 5/16 inch NC

6шт.

19

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, positive battery cable to engine bell housing

1шт.

19a

L129099

CLAMP

- P-type, 7/8 inch dia, positive battery cable to frame, not shown

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.
