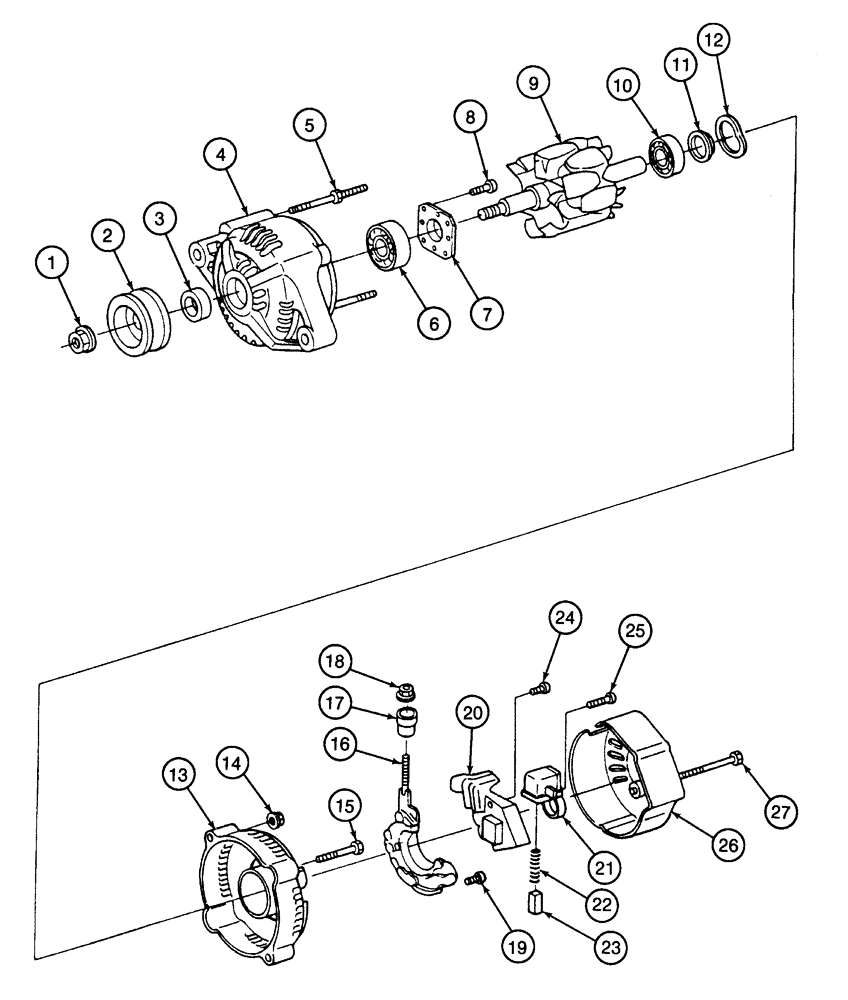

Запчасти Case 460 (4-06) - ALTERNATOR ASSEMBLY, 125564A1, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS

125564A1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, see figure 4-2 for mounting parts, includes: Refs. 1 - 27

1шт.

125564A1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 100 ampere, N.A. Only

1шт.

125564A1C

CORE-ALTERNATOR

Return Number, N.A. Only

1шт.

1

129413A1

FLANGE NUT

NUT - hex flange, special

1шт.

2

129412A1

PULLEY

PULLEY - alternator

1шт.

3

129414A1

COLLAR

COLLAR - alternator frame

1шт.

4

129419A1

COVER

FRAME - alternator drive end

1шт.

5

129424A1

BOLT

STUD - with nut

2шт.

6

129425A1

BEARING, BALL

BEARING - ball

1шт.

7

129420A1

IDENTITY PLATE

PLATE - retainer

1шт.

8

129422A1

SCREW

BOLT - round head, special

4шт.

9

129415A1

ROTOR

ROTOR - alternator

1шт.

10

129417A1

BEARING, BALL

BEARING - ball

1шт.

11

129416A1

BEARING COVER

COVER - alternator bearing

1шт.

12

129418A1

THRUST WASHER

WASHER - thrust

1шт.

13

129426A1

FRAME

FRAME - alternator, end

1шт.

14

129457A1

FLANGE NUT

NUT - hex flange, special

2шт.

15

129458A1

BOLT

BOLT - hex flange, special

2шт.

16

129429A1

RECTIFIER

RECTIFIER - alternator

1шт.

17

129430A1

BUSHING

BUSHING - insulation

1шт.

18

129459A1

FLANGE NUT

NUT - hex flange, special

1шт.

19

129454A1

BOLT

BOLT - round head, special, rectifier

6шт.

20

129460A1

HEATED GLASS

REGULATOR - voltage

1шт.

21

129431A1

BRUSH HOLDER

HOLDER - voltage regulator brush

1шт.

22

129452A1

SPRING

SPRING - brush

2шт.

23

129432A1

COMMUTATOR BRUSH

BRUSH - voltage regulator

2шт.

24

129453A1

BOLT

BOLT - round head, special

2шт.

25

129455A1

BOLT

BOLT - round head, special

1шт.

26

129428A1

COVER

COVER - alternator end

1шт.

27

129456A1

BOLT

BOLT - hex, special

3шт.
