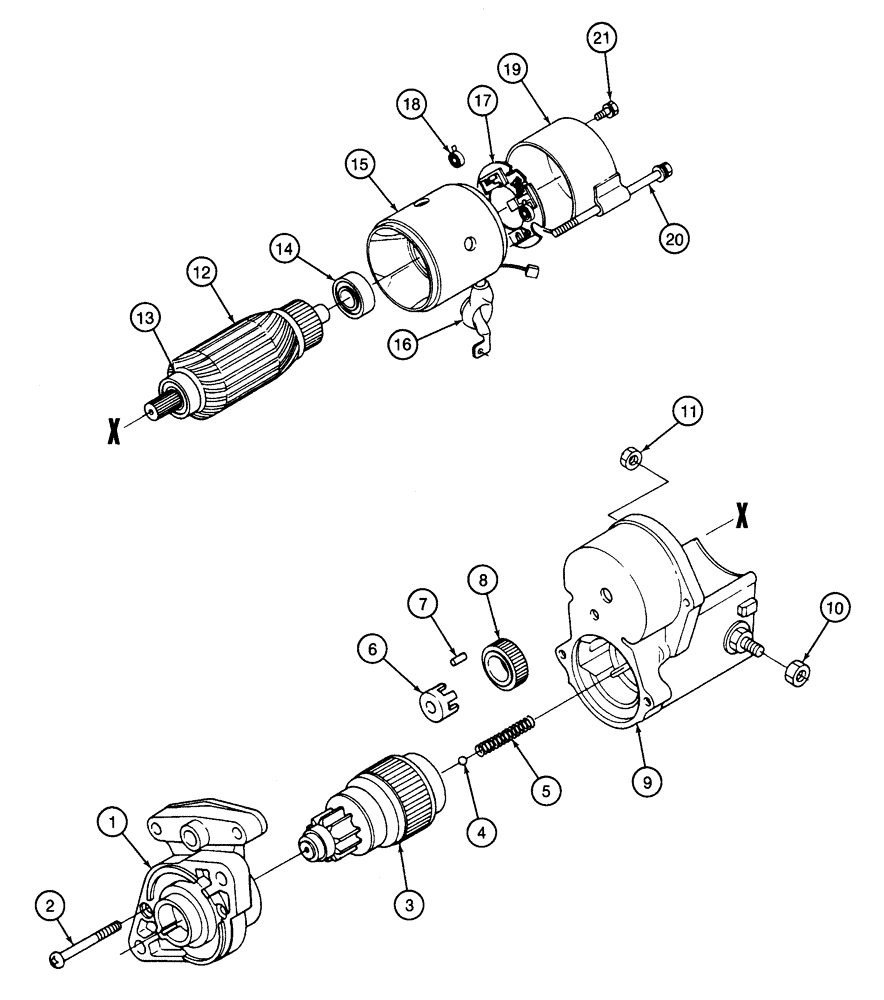

Запчасти Case 460 (4-04) - STARTER ASSEMBLY, 125442A1, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS

125442A1

STARTER MOTOR

STARTER ASSEMBLY - engine, see figure 2-36 for mounting parts, includes: Refs. 1 - 25

1шт.

125442A1R

REMAN-STARTER

Remanufactured STARTER 12 volt, OSGR - For N.A. Only

1шт.

125442A1C

CORE-STARTER

Return Number, STARTER 12 volt, OSGR - For N.A. Only

1шт.

1

129520A1

BOX

HOUSING - starter

1шт.

2

129533A1

SCREW

SCREW - pan head, special

2шт.

3

129519A1

CONTROL

CLUTCH - starter

1шт.

4

129531A1

BALL

BALL - steel, clutch

1шт.

5

129532A1

SPRING

SPRING - detent

1шт.

6

129530A1

STOP

RETAINER - gear

1шт.

7

129529A1

PIN

PIN - roll

5шт.

8

129528A1

GEAR

GEAR - starter

1шт.

9

129521A1

SWITCH ASSY

SWITCH - magnetic

1шт.

10

129536A1

SPECIAL NUT

NUT - hex, special

1шт.

11

129538A1

SPECIAL NUT

NUT - hex, special

1шт.

12

129516A1

ROTOR

ARMATURE - starter

1шт.

13

129517A1

BALL BEARING

BEARING - ball

1шт.

14

129518A1

BALL BEARING

BEARING - ball

1шт.

15

129515A1

BODY

YOKE - starter

1шт.

16

129537A1

COVER

COVER - cable

1шт.

17

129522A1

BRUSH HOLDER

HOLDER - brush

1шт.

18

129523A1

SPRING

SPRING - brush

4шт.

19

129527A1

COVER

FRAME - starter, end

1шт.

20

129534A1

BOLT

BOLT - hex, special, flange

2шт.

21

129535A1

BOLT

BOLT - hex, special

2шт.

22

129539A1

O-RING

O-RING - cable, not shown

2шт.

23

129541A1

ELECTRIC CABLE

CABLE - stop solenoid, not shown

1шт.

24

129543A1

RIGID TUBE

PIPE - drain, not shown

1шт.

25

129544A1

GUARD

BAND - cover, not shown

1шт.
