(3-22) - FUEL INJECTION PUMP ASSEMBLY, 197421A1, KUBOTA V1505-B ENGINE

Запчасти Case 460 (3-22) - FUEL INJECTION PUMP ASSEMBLY, 197421A1, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

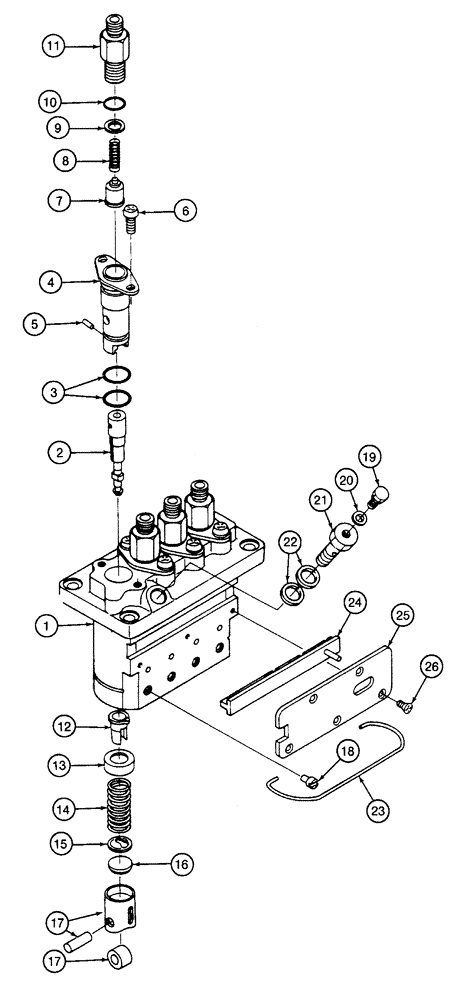

Схема запчастей Case 460 - (3-22) - FUEL INJECTION PUMP ASSEMBLY, 197421A1, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM
17
5
12
1
4
25
21
26
6
22
10
2
23
3
8
19
14
15
7
17
18
9
16
24
13
20
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

197421A1

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, new, includes: Refs. 2 - 27

1шт.

2

197439A1

FUEL SYSTEM INJECTOR

PLUNGER - pump

4шт.

3

129395A1

O-RING

- plunger

8шт.

4

129392A1

FLANGE

- sleeve

4шт.

5

129394A1

PIN

- dowel

4шт.

6

129396A1

SCREW

- flange

8шт.

7

129386A1

HYDRAULIC VALVE

VALVE - delivery

4шт.

8

129387A1

SPRING

- delivery valve

4шт.

9

129388A1

GASKET

- delivery valve

4шт.

10

129390A1

O-RING

- holder

4шт.

11

129389A1

FITTING

HOLDER - delivery valve

4шт.

12

129407A1

SLEEVE

- control

4шт.

13

129401A1

SEAT/SLOT

SEAT - upper, spring

4шт.

14

129400A1

SPRING

- plunger

4шт.

15

129402A1

SEAT/SLOT

SEAT - spring, spring

4шт.

16

129403A1

ADJUSTING PLATE

SHIM - tappet

4шт.

17

129397A1

HEATED GLASS

TAPPET - injection pump

4шт.

18

129398A1

PIN

- tappet guide

4шт.

19

129410A1

SCREW

- special

1шт.

20

129411A1

GASKET

- screw

1шт.

21

197442A1

SCREW

- hollow

1шт.

22

129409A1

GASKET

- screw

2шт.

23

129399A1

PIN

- clamp

1шт.

24

129404A1

SUPPORT

BRACKET - control

1шт.

25

197441A1

PLATE

- control bracket

1шт.

26

129406A1

SCREW

SCREW - special

5шт.

27

197449A1

SPECIAL NUT

- special, not shown

1шт.
