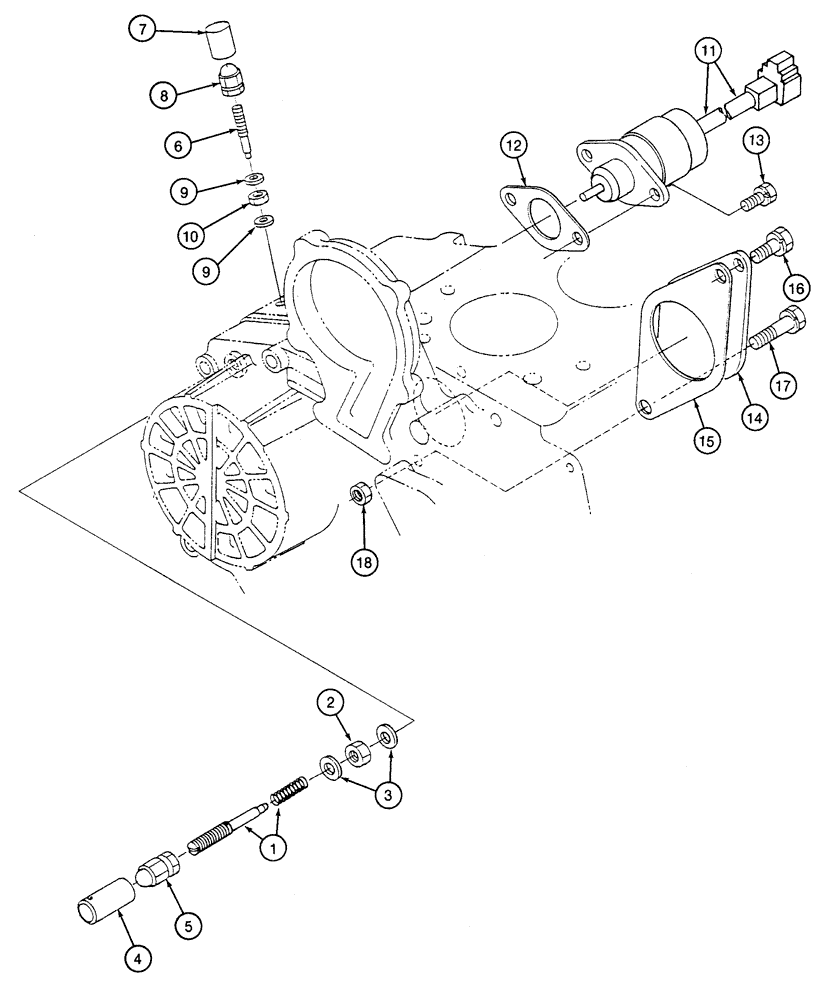

Запчасти Case 460 (3-20) - IDLING APPARATUS, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

125524A1

KIT

IDLER ASSEMBLY - engine speed, includes: Refs. 1 - 5

1шт.

1

125525A1

ADJUSTMENT SCREW

BOLT - adjusting

1шт.

2

125527A1

SPECIAL NUT

- hex, special

1шт.

3

1959403C1

GASKET

- special, 6 x 10 x 1 mm

2шт.

4

200544A1

PLUG

CAP - adjusting nut, bolt

1шт.

5

125528A1

NUT

- cap

1шт.

6

125529A1

BOLT

- adjusting

1шт.

7

1959405C1

BUSHING

CAP - adjusting bolt

1шт.

8

125528A1

NUT

- cap

1шт.

9

1959403C1

GASKET

- special, 6 x 10 x 1 mm

2шт.

10

125527A1

SPECIAL NUT

- hex, special

1шт.

11

125531A1

SOLENOID VALVE

SOLENOID - engine

1шт.

12

200078A1

GASKET

- solenoid

1шт.

13

126132A1

CAPTIVE WASHER SCREW,Hex

- hex, with lock washer, solenoid

2шт.

14

125533A1

COVER

- hydraulic pump

1шт.

15

125534A1

GASKET

- cover

1шт.

16

126136A1

CAPTIVE WASHER SCREW

- hex, with lock washer, cover retaining, upper

1шт.

17

126138A1

CAPTIVE WASHER SCREW,Hex

- hex, special, cover retaining, lower

1шт.

18

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.
