(3-16) - GOVERNOR CONTROL ASSEMBLY, KUBOTA V1505-B ENGINE

Запчасти Case 460 (3-16) - GOVERNOR CONTROL ASSEMBLY, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

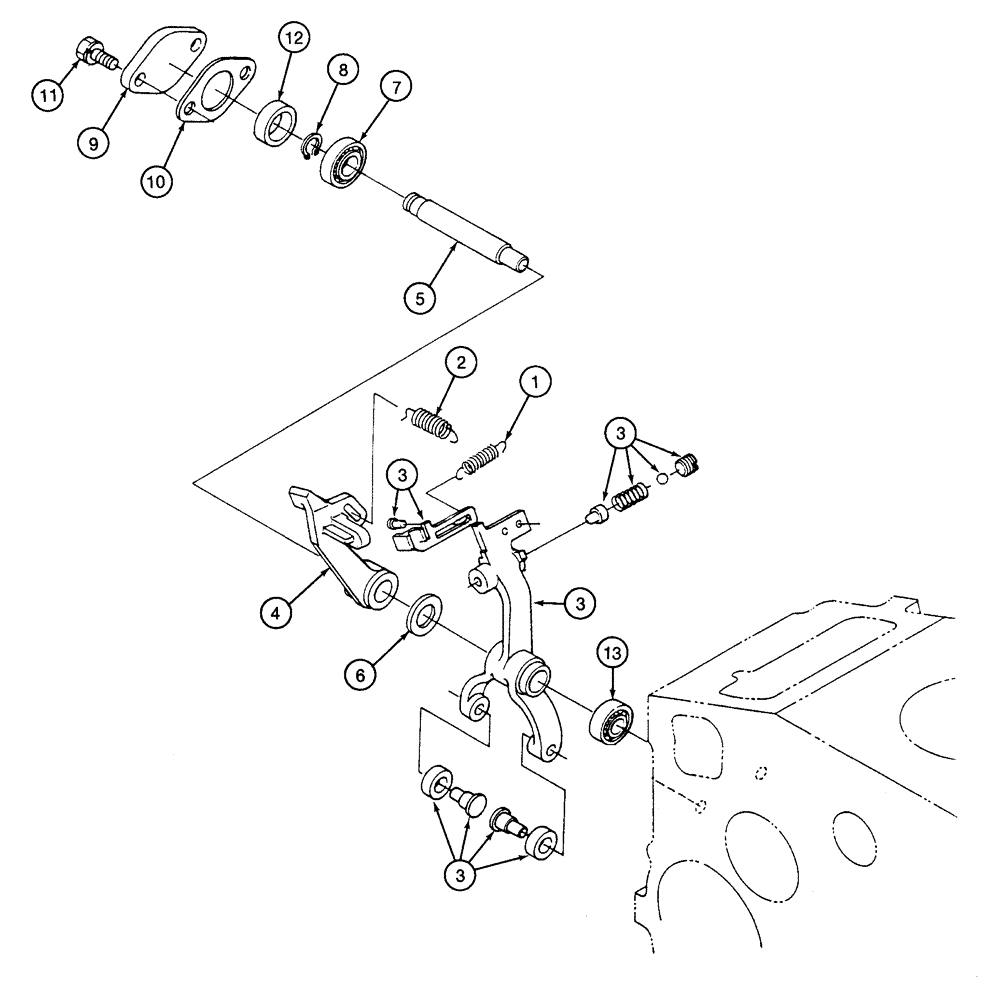

Схема запчастей Case 460 - (3-16) - GOVERNOR CONTROL ASSEMBLY, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM
7
6
12
3
13
4
5
3
3
9
8
2
1
3
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

125551A1

SPRING

- return, start

1шт.

2

125552A1

SPRING

- governor

1шт.

125553A1

KIT

LEVER ASSEMBLY - fork, complete set, includes: Refs. 3 - 8

1шт.

3

197443A2

LEVER ASSY.

LEVER - governor control (Replaces 197443A1)

1шт.

4

125555A1

LEVEL GAUGE

LEVER - fork

1шт.

5

125556A1

SPINDLE

SHAFT - fork lever

1шт.

6

125557A1

WASHER

- flat, special

1шт.

7

125558A1

BALL BEARING

BEARING - ball

1шт.

8

125559A1

RING, SNAP

RING - snap

1шт.

9

125560A1

COVER

- fork lever shaft

1шт.

10

125561A1

GASKET

- cover

1шт.

11

126132A1

CAPTIVE WASHER SCREW,Hex

- hex, with lock washer

2шт.

12

125562A1

COLLAR

- governor

1шт.

13

125563A1

BALL BEARING

BEARING - ball

1шт.
