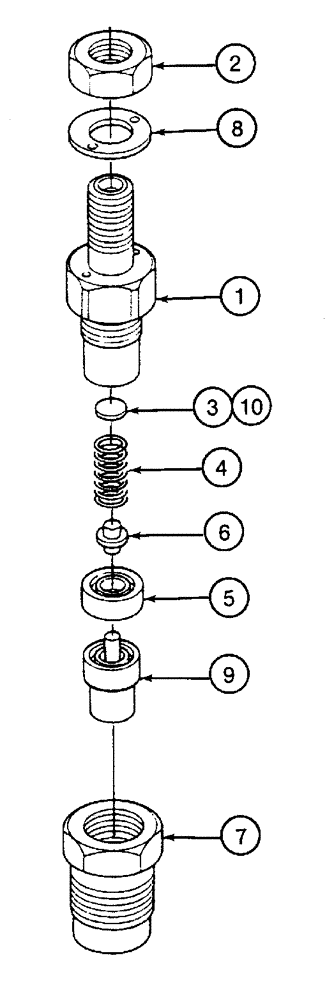

Запчасти Case 460 (3-12) - FUEL INJECTION NOZZLE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

125447A2

HOLDER, INJECTOR NOZ

INJECTOR ASSEMBLY - fuel, includes: Refs. 1 - 9

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

2

197444A1

SPECIAL NUT

- hex, special

1шт.

3

197445A1

WASHER

- special, adjusting

1шт.

4

197446A1

SPRING

- nozzle

1шт.

5

197447A1

SPACER

- nozzle

1шт.

6

197448A1

SET OF PARTS

ROD - push

1шт.

7

197449A1

SPECIAL NUT

- special

1шт.

8

197450A1

WASHER

- flat, special

1шт.

9

197451A1

NOZZLE

- fuel injector

1шт.

197452A1

HEATED GLASS

KIT - adjusting washers, 0.100 - 0.800 mm thick, use one of the thickness required, includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.100 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.125mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.150 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.175 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.200 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.225 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.250 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.275 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.300 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.325 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.350 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.375 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.400 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.425 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.450 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.475 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.500 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.525 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.550 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.575 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.600 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.625 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.675 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.700 mm thick

1шт.

197452A1

HEATED GLASS

KIT - adjusting washers, 0.100 - 0.800 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.700 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.725 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.750 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.775 mm thick

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - adjusting, 0.800 mm thick

1шт.
