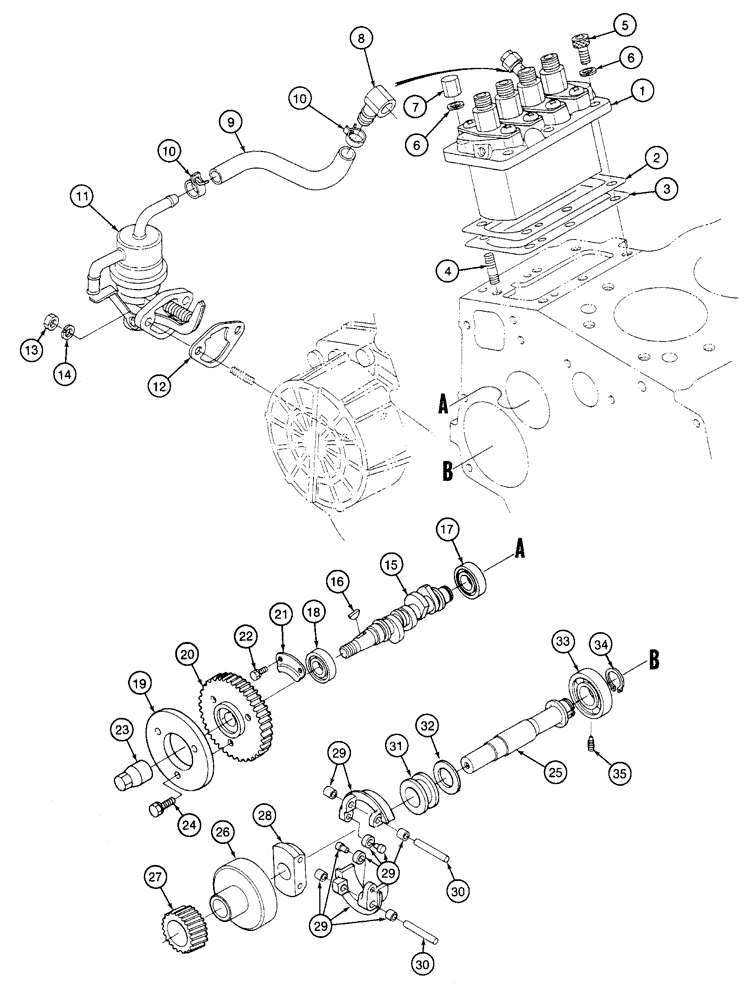

Запчасти Case 460 (3-10) - INJECTION PUMP DRIVE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

1

197421A1

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, parts list figure 3-22

1шт.

2

125484A2

SHIM

- injection pump

1шт.

3

125485A2

NUT

SHIM - injection pump

1шт.

3a

197425A1

SHIM

- injection pump, not shown

1шт.

4

125496A1

STUD

- pump mounting

3шт.

5

126134A1

BOLT

- hex socket, special

3шт.

6

1959206C1

SPRING WASHER

- lock, special

6шт.

7

125497A1

NUT

- hex, injection pump mounting stud

3шт.

8

125477A1

HYD CONNECTOR

CONNECTOR - banjo

1шт.

9

125500A1

HOSE ASSY.

TUBE - transfer pump to injection pump, includes: Ref. 10

1шт.

10

125501A1

HOSE CLAMP

CLAMP - tube

2шт.

11

125498A1

FUEL PUMP

PUMP - fuel transfer

1шт.

12

200068A1

GASKET

- fuel pump

1шт.

13

1959205C1

NUT

- hex, special

2шт.

14

1959206C1

SPRING WASHER

- lock, special

2шт.

15

197422A1

CAMSHAFT

- fuel pump drive

1шт.

16

125507A1

KEY

- camshaft

1шт.

17

125503A1

BALL BEARING

BEARING - ball

1шт.

18

125504A1

BALL BEARING

BEARING - ball

1шт.

19

125505A1

PLATE

CAM - fuel injection pump drive

1шт.

20

125508A1

GEAR

- injection pump

1шт.

21

125509A1

STOP

- camshaft

1шт.

22

1959477C1

BOLT

- hex, with lock washer, special

2шт.

23

125506A1

NUT

- cap

1шт.

24

1959155C1

BOLT

BOLT - hex, captive washer, special, includes: Refs. 25 - 32

3шт.

125510A1

KIT

SHAFT ASSEMBLY - governor

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT - governor

1шт.

26

125511A1

SUPPORT

HOLDER - governor gear

1шт.

27

125512A1

GEAR

- governor

1шт.

28

125513A1

HOLLOW SCREW

HOLDER - governor weight

1шт.

29

125514A1

BRACKET

WEIGHT - governor

2шт.

30

125515A1

SPINDLE

SHAFT - governor weight

2шт.

31

125516A1

SLEEVE

- governor

1шт.

32

125517A1

THRUST WASHER

- thrust

1шт.

33

125518A1

BALL BEARING

BEARING - ball

1шт.

34

125519A1

CIRCLIP

RING - snap, governor shaft

1шт.

35

125520A1

SCREEN

SCREW - set

1шт.
