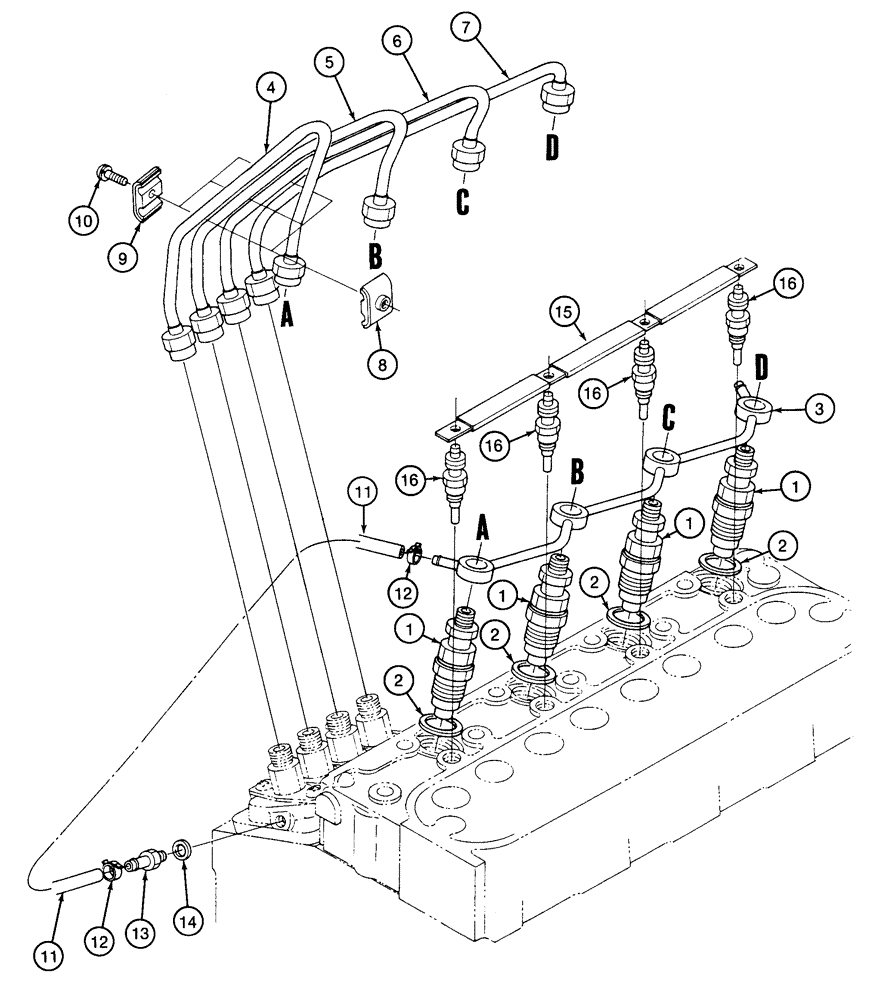

Запчасти Case 460 (3-08) - FUEL INJECTION SYSTEM, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

1

125447A2

HOLDER, INJECTOR NOZ

INJECTOR ASSEMBLY - fuel, parts list figure 3-12

4шт.

2

125448A1

GASKET

GASKET - fuel injector nozzle

4шт.

3

200489A1

RIGID TUBE

MANIFOLD - fuel drain

1шт.

4

125449A2

RIGID TUBE

TUBE - fuel injector No. 1

1шт.

5

125451A2

RIGID TUBE

TUBE - fuel injector No. 2

1шт.

6

125453A2

RIGID TUBE

TUBE - fuel injector No. 3

1шт.

7

125455A2

PIPE

TUBE - fuel injector No. 4

1шт.

8

1959393C1

HOSE CLIP

CLAMP - fuel tube

3шт.

9

1959394C1

HOSE CLIP

CLAMP - fuel tube

3шт.

10

1959395C1

SCREW

BOLT - hex, captive washer, special

3шт.

11

200491A1

TUBE

TUBE - overflow

1шт.

12

125446A1

HOSE CLAMP

CLAMP - overflow tube

2шт.

13

125444A1

SCREEN

ADAPTER - overflow tube

1шт.

14

1959403C1

GASKET

- special, 6 x 10 x 1 mm

1шт.

15

125458A1

ROPE

STRIP - glow plug

1шт.

16

197424A1

GLOW PLUG

PLUG - glow

4шт.

17

197423A1

SEAL

- heat, not shown

4шт.

18

221651A1

DECAL

- ether caution, not shown

1шт.
