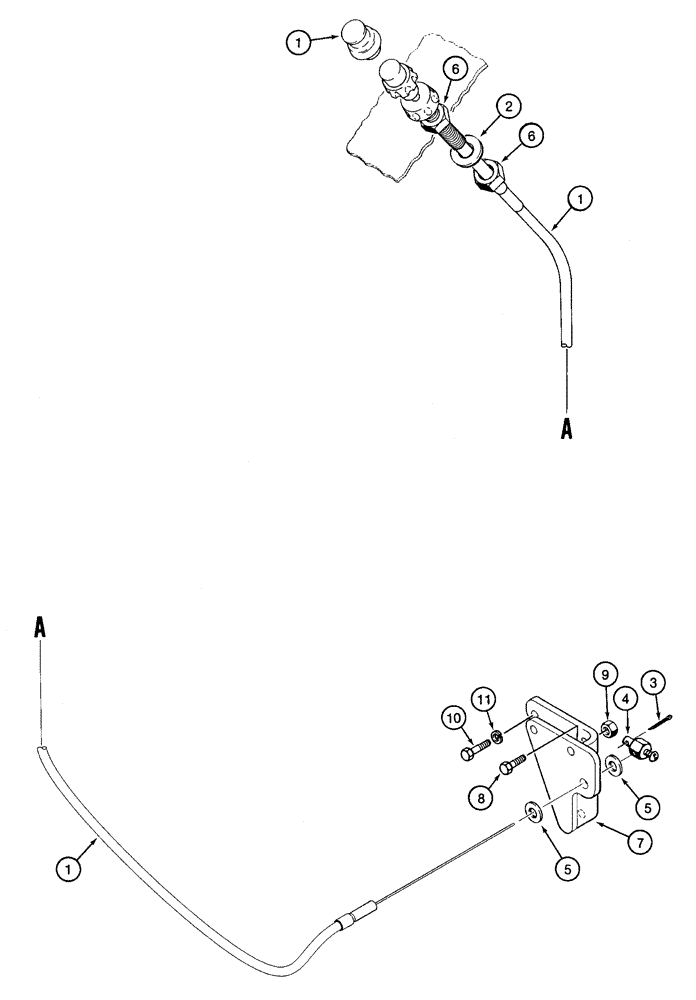

Запчасти Case 460 (3-06) - THROTTLE CONTROL CABLE AND MOUNTING (03) - FUEL SYSTEM

1

133452A1

CABLE

- throttle control, internal components not serviced separately

1шт.

2

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

3

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

4

D92852

PIVOT

ASSEMBLY - throttle cable

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

7

113902A2

BRACKET

- mounting, throttle cable

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

9

825-1408

NUT,M8, Cl 8

1шт.

10

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

1шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
