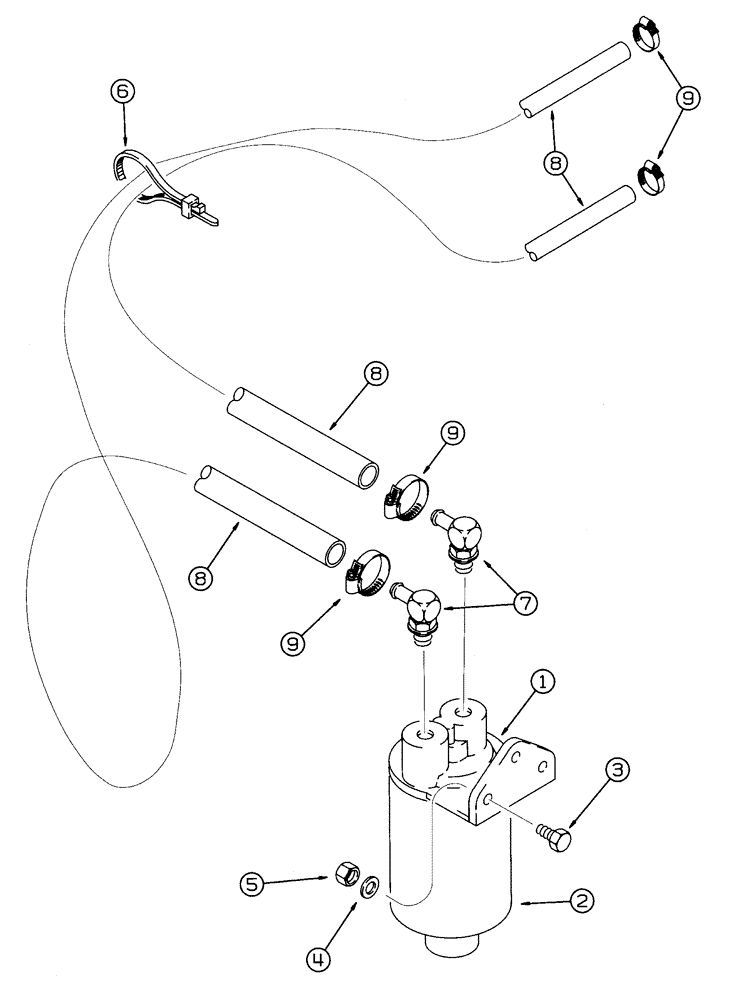

Запчасти Case 460 (3-04) - REMOTE FUEL FILTER (03) - FUEL SYSTEM

114545A1

FILTER ASSY

FILTER ASSEMBLY - remote fuel, includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

J843760

FILTER

- fuel

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

4

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

3шт.

5

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

3шт.

6

H119628

MOUNTING CLIP

STRAP - tie

1шт.

7

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 5/16 stem end x 1/4 inch PT

2шт.

8

109397A1

HOSE

- 610 mm (24 inch) long, fuel

2шт.

9

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

4шт.
