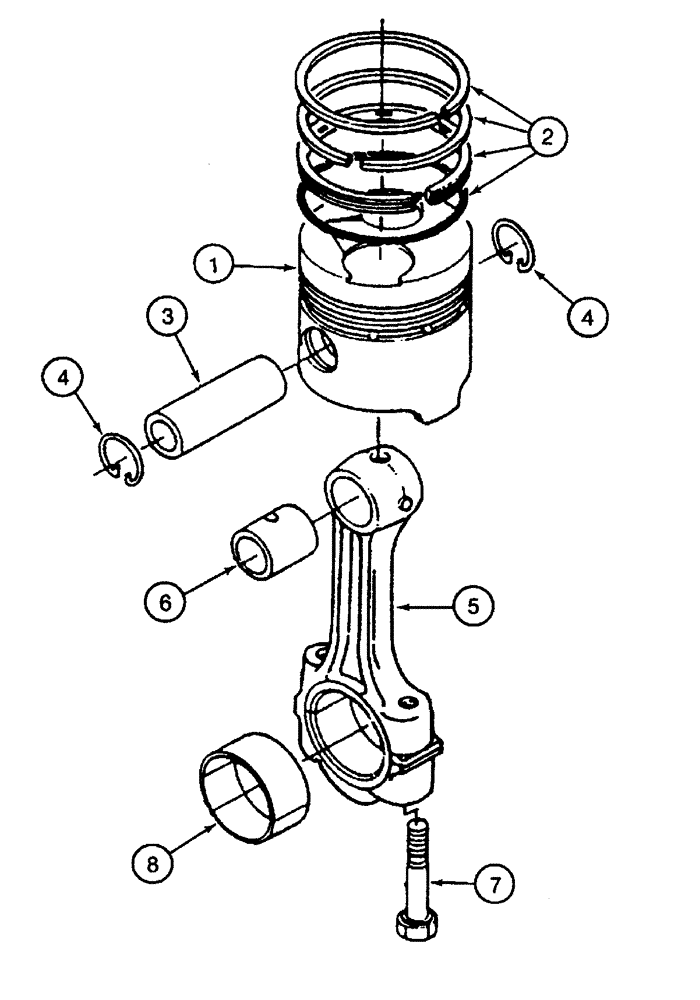

Запчасти Case 460 (2-38) - PISTONS AND CONNECTING RODS, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125350A2

PISTON

- standard

4шт.

1

125351A2

PISTON

- 0.5 mm oversize

4шт.

2

125352A1

PISTON RINGS KIT

RING - piston, set, standard

4шт.

2

125353A1

SET OF RINGS

RING - piston, set, 0.5 mm oversize

4шт.

3

125354A1

PIN

- piston

4шт.

4

125355A1

CIRCLIP

RING - snap, piston pin

8шт.

125356A1

LINK CONROD

ROD ASSEMBLY - connecting, includes: Refs. 5 - 8

4шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

6

125357A1

SPECIAL TOOL

BUSHING - connecting rod

1шт.

7

125358A1

BOLT

- connecting rod

2шт.

8

125359A1

BEARING ASSY

BEARING - crankshaft pin, standard

1шт.

8

125360A1

BEARING ASSY

BEARING - crankshaft pin, 0.2 mm undersize

1шт.

8

125361A1

BEARING ASSY

BEARING - crankshaft pin, 0.4 mm undersize

1шт.
