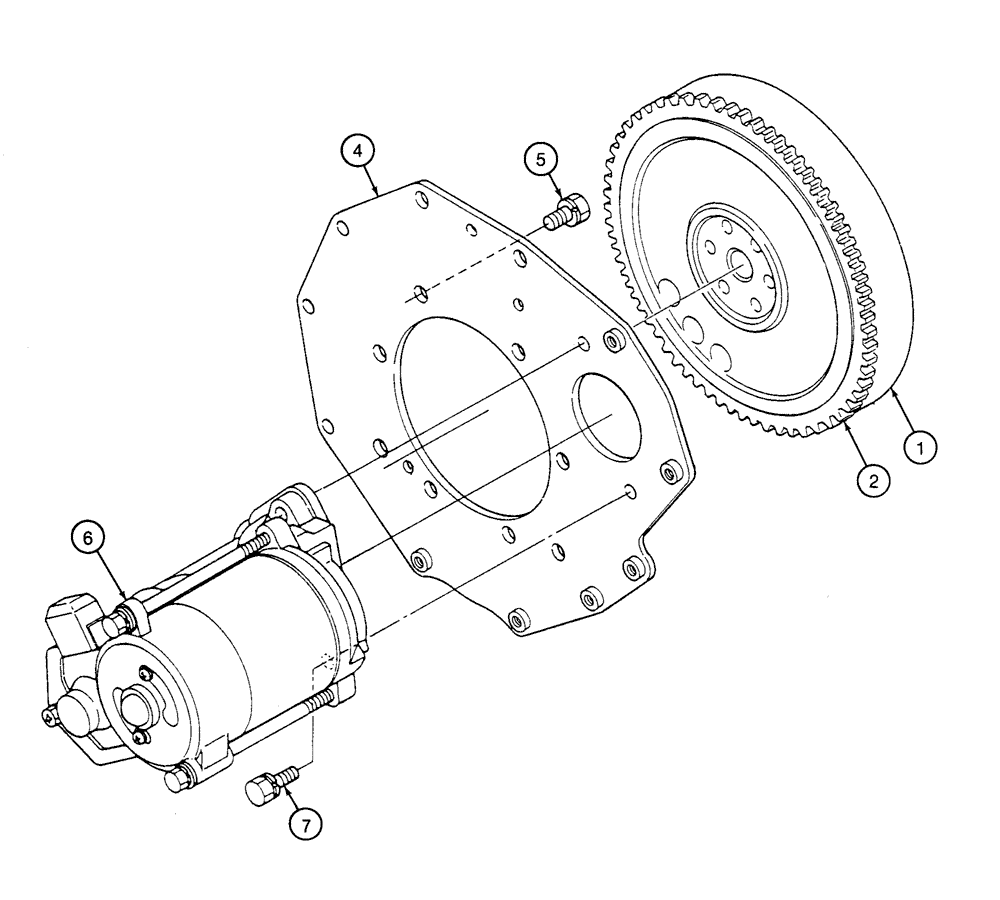

Запчасти Case 460 (2-36) - FLYWHEEL AND STARTER MOTOR MOUNTING, KUBOTA V1505-B ENGINE, FLYWHEEL AND STARTER MOUNTING (02) - ENGINE

1

125438A1

ENGINE FLYWHEEL

FLYWHEEL ASSEMBLY - crankshaft, includes: Refs. 2

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

4

125440A1

PLATE

PLATE - flywheel cover

1шт.

5

1959379C1

BOLT

BOLT - hex, with lock washer, 10 - 1.25 x 25 mm, flywheel plate

8шт.

6

125442A1

STARTER MOTOR

STARTER ASSEMBLY - engine, parts list figure 4-4

1шт.

6

125442A1R

REMAN-STARTER

Remanufactured STARTER 12 volt, OSGR - For N.A. Only

1шт.

6

125442A1C

CORE-STARTER

Return Number, STARTER 12 volt, OSGR - For N.A. Only

1шт.

7

126133A1

CAPTIVE WASHER SCREW,Hex

BOLT - hex, with lockwasher, starter mounting

2шт.

8

125439A1

BOLT

BOLT - special, mounting, flywheel to crankshaft, not shown

6шт.
