(2-34) - MAIN BEARING HOUSING, KUBOTA V1505-B ENGINE

Запчасти Case 460 (2-34) - MAIN BEARING HOUSING, KUBOTA V1505-B ENGINE (02) - ENGINE

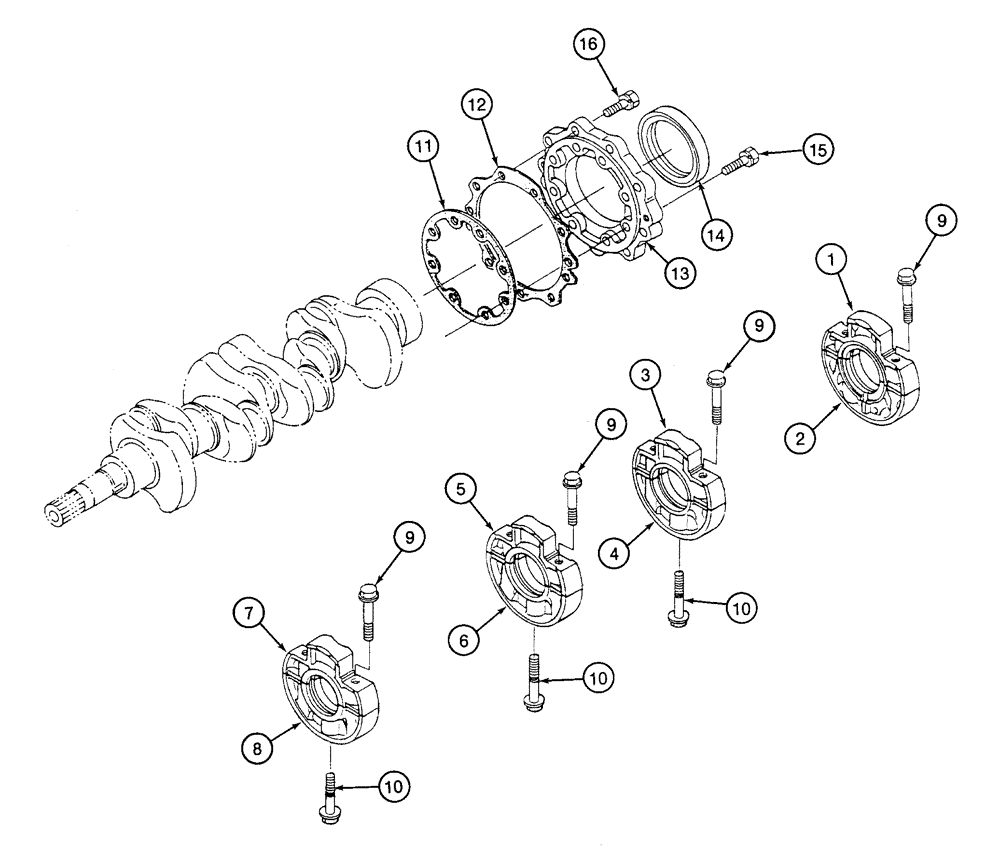

Схема запчастей Case 460 - (2-34) - MAIN BEARING HOUSING, KUBOTA V1505-B ENGINE (02) - ENGINE
16
7
15
2
3
9
1
12
8
4
9
5
11
6
13
9
10
10
14
10
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

125292A1

CYLINDER END CAP

HOUSING ASSEMBLY - main bearing, includes: Refs. 2 and 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

125301A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSEMBLY - main bearing 3, includes: Refs. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

125300A1

BEARING CAP,Incl Upper and Lower

HOUSING ASSEMBLY - main bearing 2, includes: Refs. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

125298A1

HEATED GLASS

HOUSING ASSEMBLY - main bearing 1, includes: Refs. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - half

1шт.

9

125293A1

BOLT

- bearing housing, upper

8шт.

10

125299A1

BOLT

- bearing housing, lower

3шт.

11

125294A1

GASKET

GASKET - bearing housing

1шт.

12

125297A1

OIL SEAL

GASKET - main bearing housing cover

1шт.

13

125295A1

COVER

- bearing housing

1шт.

14

125296A1

OIL SEAL

SEAL - oil

1шт.

15

1959216C1

BOLT

- hex, with lock washer, bearing housing cover

8шт.

16

1959215C1

BOLT

- hex, with lock washer, bearing housing cover

9шт.
