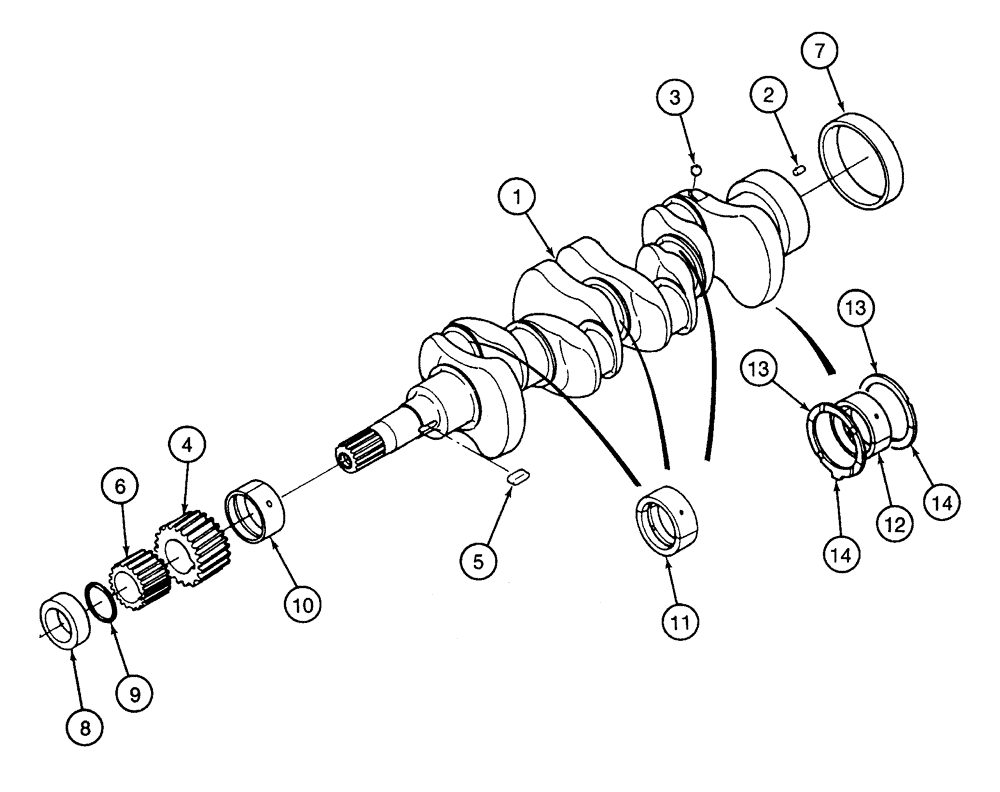

Запчасти Case 460 (2-32) - CRANKSHAFT, KUBOTA V1505-B ENGINE (02) - ENGINE

200304A1

CRANKSHAFT

ASSEMBLY - engine, includes: Refs. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

2

125235A1

PIN

- dowel, used only if flywheel mating part is machined for pin

1шт.

3

125410A1

BALL

- crankshaft

1шт.

4

125411A1

GEAR

- crankshaft

1шт.

5

125412A1

KEY

- crankshaft

1шт.

6

125414A1

PINION

GEAR - oil pump drive

1шт.

7

125415A1

SLEEVE

- crankshaft

1шт.

8

125416A1

COLLAR

- crankshaft

1шт.

9

125417A1

O-RING

- crankshaft

1шт.

10

125418A1

CRANKSHAFT BEARING

BEARING - main, No. 1, standard

1шт.

10

125420A1

CRANKSHAFT BEARING

BEARING - main, No. 1, 0.20 mm undersize

1шт.

10

125421A1

CRANKSHAFT BEARING

BEARING - main, No. 1, 0.40 mm undersize

1шт.

11

125422A1

CRANKSHAFT BEARING

BEARING - main, No. 2, standard

3шт.

11

125423A1

CRANKSHAFT BEARING

BEARING - main, No. 2, 0.20 mm undersize

3шт.

11

125424A1

CRANKSHAFT BEARING

BEARING - main, No. 2, 0.40 mm undersize

3шт.

12

125427A1

CRANKSHAFT BEARING

BEARING - main, No. 3, standard

1шт.

12

125429A1

CRANKSHAFT BEARING

BEARING - main, No. 3, 0.20 mm undersize

1шт.

12

125430A1

CRANKSHAFT BEARING

BEARING - main, No. 3, 0.40 mm undersize

1шт.

13

125431A1

THRUST BEARING

PLATE - thrust, No. 1 bearing

2шт.

13

125432A1

THRUST BEARING

PLATE - thrust, No. 1 bearing, 0.2 mm oversize

2шт.

13

125433A1

THRUST BEARING

PLATE - thrust, No. 1 bearing, 0.4 mm oversize

2шт.

14

125434A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, standard

2шт.

14

125435A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, 0.2 mm oversize

2шт.

14

125437A1

THRUST BEARING

PLATE - thrust, No. 2 bearing, 0.4 mm oversize

2шт.
