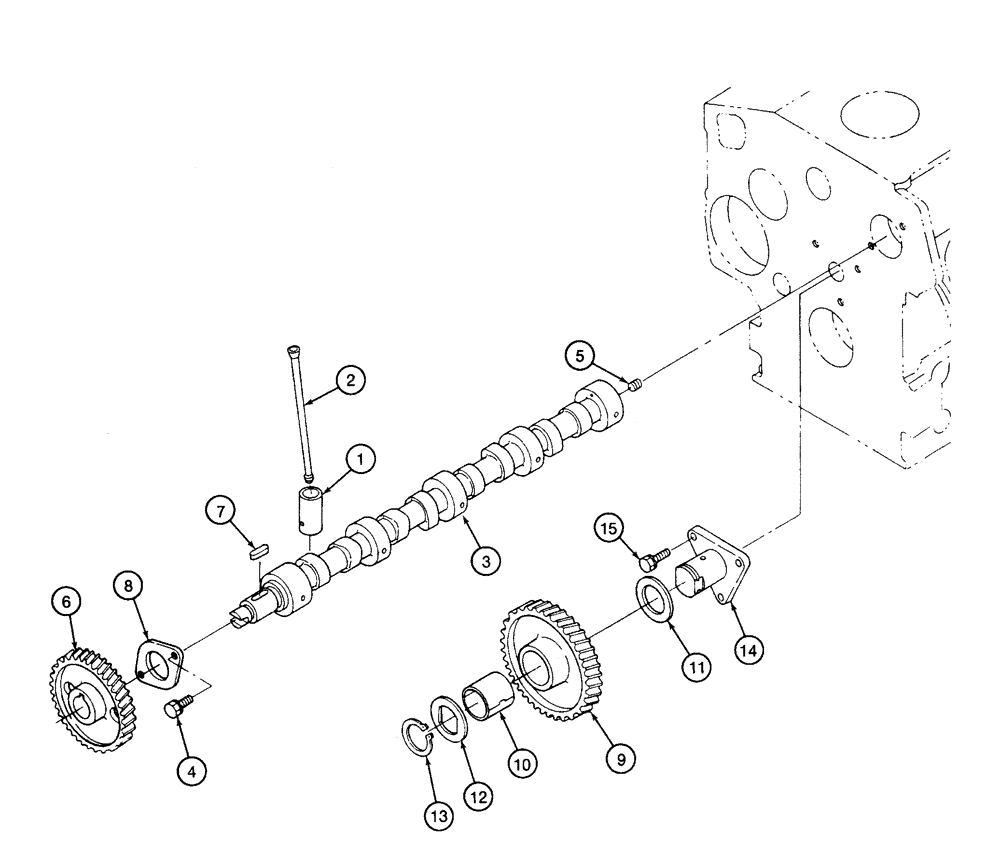

Запчасти Case 460 (2-28) - CAMSHAFT, KUBOTA V1505-B ENGINE (02) - ENGINE

1

1959299C1

BUSHING

TAPPET - push rod

8шт.

2

125336A1

SET OF PARTS

ROD - push

8шт.

125337A1

CRANKSHAFT

CAMSHAFT ASSEMBLY - engine, includes: Refs. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

CAMSHAFT - engine

1шт.

4

126132A1

CAPTIVE WASHER SCREW,Hex

- hex, with lock washer, camshaft

2шт.

5

125339A1

SCREEN

SCREW - set

1шт.

6

125341A1

GEAR

- camshaft

1шт.

7

125342A1

KEY

- feather

1шт.

8

125343A1

STOP

PLATE - camshaft

1шт.

125344A1

COMPACTOR WHEEL

GEAR ASSEMBLY - idler

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

10

125345A1

SPECIAL TOOL

BUSHING - idler gear

1шт.

11

125346A1

COLLAR

- idler gear, No. 1 cylinder

1шт.

12

125347A1

COLLAR

- idler gear, No. 2 cylinder

1шт.

13

125348A1

CIRCLIP

RING - snap, external

1шт.

14

125349A1

SPINDLE

SHAFT - idler gear

1шт.

15

1959319C1

BOLT

- hex, special, idler gear shaft

3шт.
