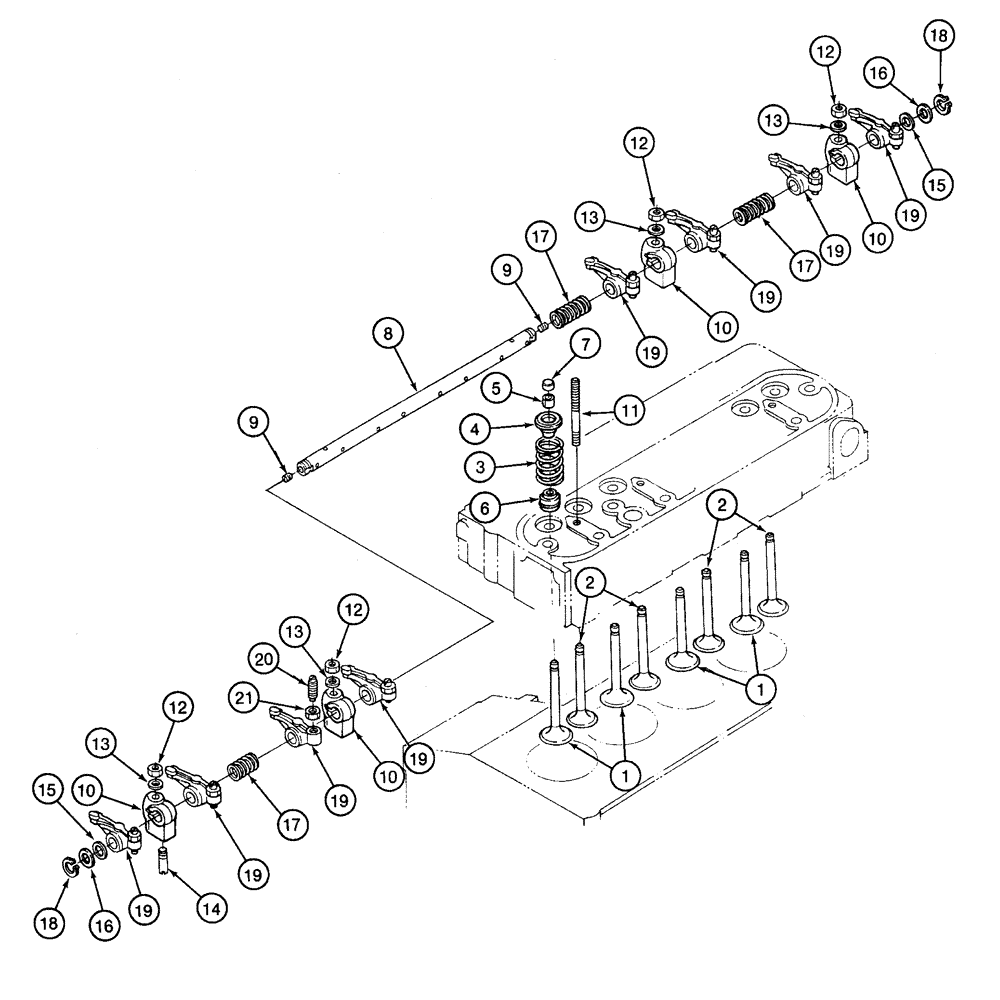

Запчасти Case 460 (2-26) - VALVE MECHANISM, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125320A1

HYDRAULIC VALVE

VALVE - intake

4шт.

2

125321A1

HYDRAULIC VALVE

VALVE - exhaust

4шт.

3

125322A1

SPRING

- valve

8шт.

4

125323A1

RETAINER

- valve spring

8шт.

5

1959278C1

SPACER

KEEPER - valve spring

8шт.

6

125324A1

SEAL

SEAL - valve stem

8шт.

7

1959280C1

PLUG

CAP - valve

8шт.

125325A1

SHAFT

ASSEMBLY - rocker arm, includes: Refs. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - rocker

1шт.

9

125326A1

SCREEN

SCREW - set

2шт.

10

125327A1

BRACKET

- rocker arm

4шт.

11

125328A1

STUD

- bracket

4шт.

12

1959288C1

NUT

- hex, 7 mm

4шт.

13

1959289C1

WASHER

- flat, 7.5 x 15 x 1.6 mm, special

4шт.

14

1959290C1

SET SCREW

- set, special, rocker arm

1шт.

15

125329A1

WASHER

- rocker arm

2шт.

16

125330A1

WASHER

- rocker arm

2шт.

17

125331A1

SPRING

- rocker arm

3шт.

18

125332A1

CIRCLE-CUTTER BLOCK

RING - snap, external

2шт.

125333A1

ROCKER ARM

ARM ASSEMBLY - rocker, includes: Refs. 8 and 9

8шт.

19

NSS

NOT SOLD SEPARAT

ARM - rocker

1шт.

20

125334A1

ADJUSTMENT SCREW

SCREW - adjusting

1шт.

21

125335A1

NUT

- adjusting screw

1шт.
