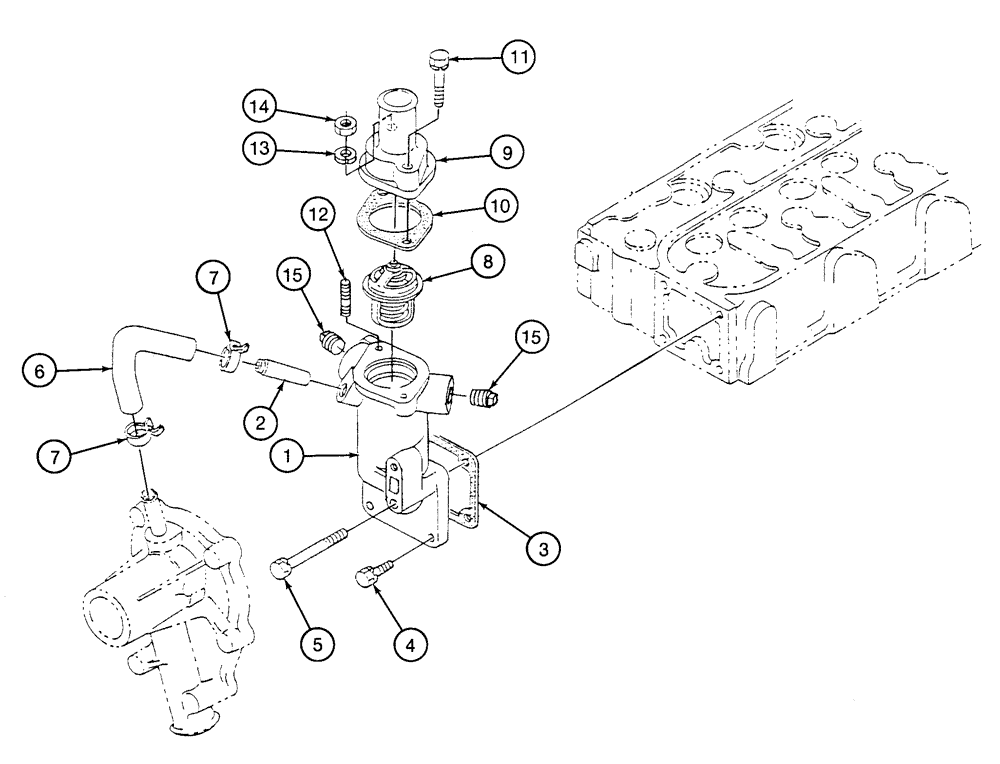

Запчасти Case 460 (2-22) - THERMOSTAT HOUSING AND TUBES, KUBOTA V1505-B ENGINE (02) - ENGINE

1

125571A1

BOX

HOUSING - thermostat, prior to engine ser. no. 110327, includes: Ref. 2

1шт.

1

382871A1

SHIN

HOUSING - thermostat, engine ser. no. 110327 and after, includes: Ref. 2

1шт.

2

125289A1

RIGID TUBE

TUBE - water return

1шт.

3

200070A1

GASKET

- thermostat housing

1шт.

4

1959319C1

BOLT

- hex, special, thermostat housing to cylinder head

3шт.

5

126127A1

CAPTIVE WASHER SCREW

- hex, with lock washer

1шт.

6

125574A1

RIGID TUBE

TUBE - water return, thermostat housing to water pump

1шт.

7

125575A1

BAND

CLAMP - tube, water return

2шт.

8

127128A1

THERMOSTAT

- engine coolant, prior to engine ser. no. 110327(Replaces 125576A1)

1шт.

8

127128A1

THERMOSTAT

- water, engine coolant, engine ser. no. 110327 and after

1шт.

9

125577A1

COVER

- thermostat, prior to engine ser. no. 110327

1шт.

9

382873A1

COVER

- thermostat, engine ser. no. 110327 and after

1шт.

10

127130A1

GASKET

- thermostat cover, prior to engine ser. no. 110327 (Replaces 200071A1)

1шт.

10

127130A1

GASKET

- thermostat cover, engine ser. no. 110327 and after

1шт.

11

1959494

BOLT - hex, with lock washer, prior to engine ser. no. 110327 (Replaces 200692A1)

1шт.

11

1959494C1

BOLT

- hex washer head, engine ser. no. 110327 and after

1шт.

12

221649A1

STUD

- thermostat cover

1шт.

13

221638A1

SPRING WASHER

- spring, special

1шт.

14

1959205C1

NUT

- hex, special

1шт.

15

1959447C1

PLUG

- square head, thermostat housing

2шт.
