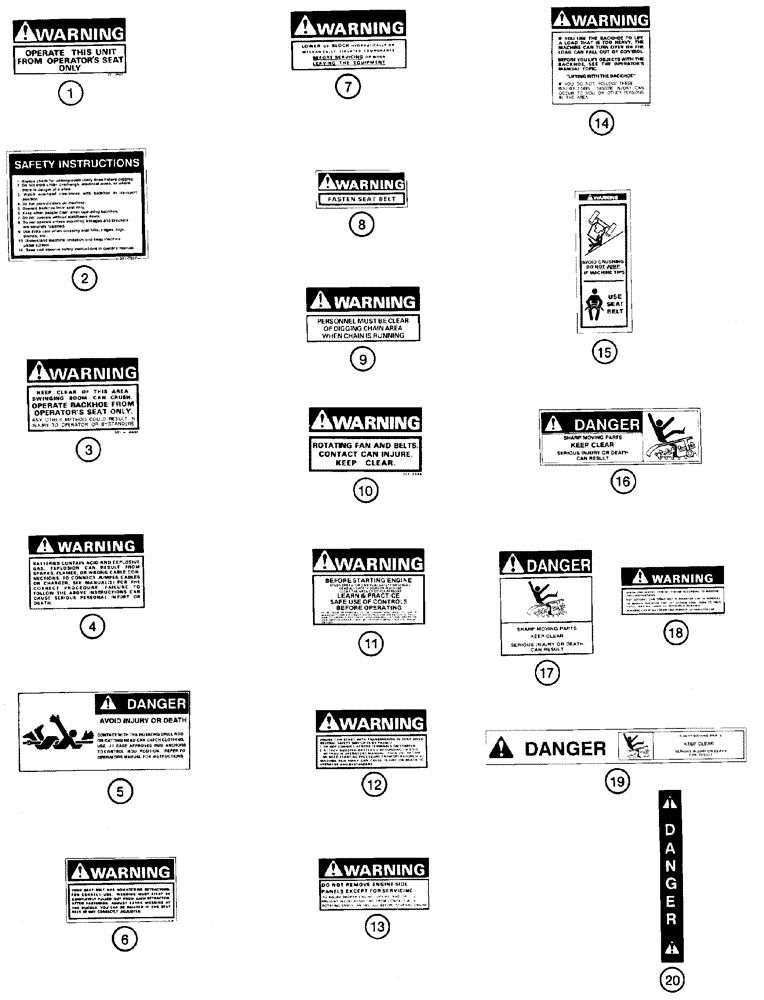

Запчасти Case 460 (9-99E) - DECALS, CAUTION, DANGER, AND WARNING (09) - CHASSIS/ATTACHMENTS

1

321-3905

DECAL

- Warning, operate this unit from operator's seat only, 2 used on units with backhoe

1-2шт.

2

321-7037

DECAL

- Warning, incorrect operation of this backhoe can result in injury or death

1шт.

3

321-4481

DECAL

- Warning, keep clear of this area, swinging boom can crush

2шт.

4

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

5

124016A1

DECAL

- Danger, avoid injury or death

2шт.

6

321-6746

DECAL

- Warning, your seat belt has non-locking retractors

1шт.

7

321-3042

DECAL

- Warning, lower or block hydraulically or mechanically, this decal is a part of 129509A1 and 178987A1 decals, item 12 on figure 9-99D

1шт.

8

321-3060

DECAL

- Warning, fasten seat belt, this decal is a part of 129509A1 and 178987A1 decals, Ref. 12 on page 9-99D

1шт.

9

321-3214

DECAL

- Warning, personnel must be clear of digging chain

3шт.

10

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

11

321-3705

DECAL

- Warning, before starting engine

1шт.

12

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

13

321-5701

DECAL

- Warning, do not remove engine side panels

2шт.

14

321-6046

WARNING DECAL

DECAL, WARNING, If you use the backhoe to lift a load that is too heavy

1шт.

15

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

2шт.

16

H438999

DECAL

- Danger, sharp moving parts, keep clear, located on crumber mounting bracket

2шт.

17

H438908

DECAL

- Danger, sharp moving parts, keep clear, 110 x 110 mm long, located on trencher frame

3шт.

18

321-6672

DECAL

- Warning, check and service cooling system

1шт.

19

H438909

DECAL

- Danger, sharp moving parts, keep clear, 60 x 470 mm long, located on crumber boom

2шт.

20

H438910

DECAL

- Danger

1шт.
