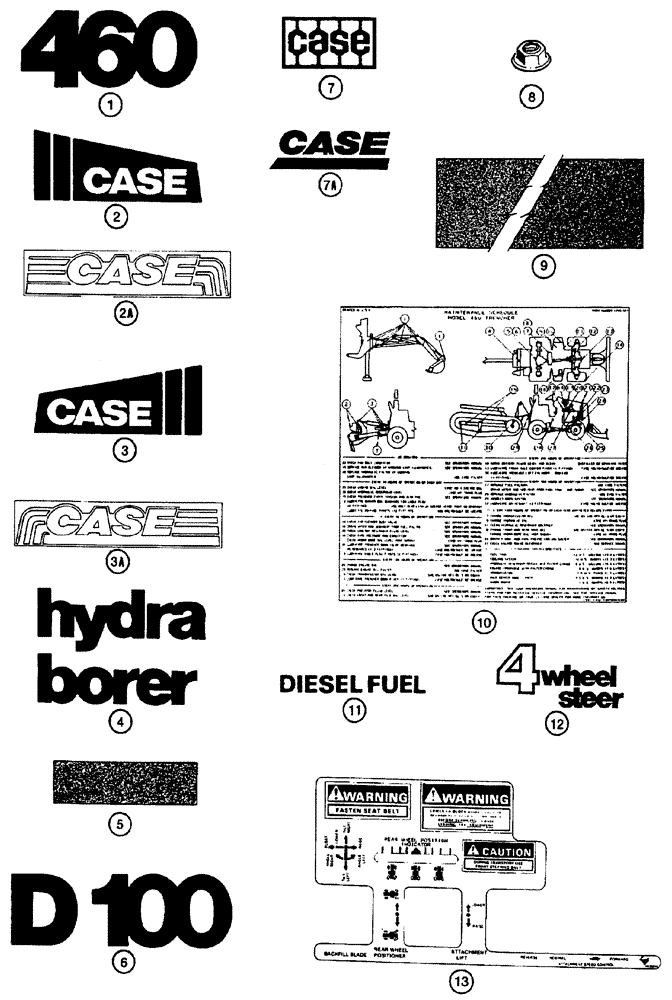

Запчасти Case 460 (9-99C) - DECALS, MODEL, LOGO, MAINTENANCE, AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

1

125876A1

DECAL

- 460, model number, brown

2шт.

1

179119A1

DECAL

- 460, model number, gray

2шт.

1

440461A1

DECAL - 460, Replaces 179119A1

2шт.

2

114751A1

DECAL

- Case, with treads, right-hand, brown

1шт.

2a

179218A2

DECAL

- Case, with stripes, right-hand, gray

1шт.

2a

440460A1

DECAL

- Case, Replaces 179218A2

1шт.

3

114750A1

DECAL

- Case, with treads, left-hand, brown

1шт.

3a

179217A2

DECAL

- Case, with stripes, left-hand, gray

1шт.

3a

440459A1

DECAL

- Case, Replaces 179217A2

1шт.

4

H427880

DECAL

- Hydra-borer

1шт.

5

H386334

FLOOR MAT

DECAL - Anti-skid, backhoe foot rests

2шт.

6

H427559

DECAL

- Model, D100

2шт.

7

321-4739

EMBLEM

DECAL - Case, if used

1шт.

7a

186989A1

EMBLEM

DECAL - Case, if used

1шт.

8

131-431

PUSH-ON NUT,Self, Threading, 1/4"

DECAL - Push-on type, special

2шт.

9

110528A1

ADHESIVE STRIP

DECAL - Anti-skid, 318 mm (12-1/2 inch) long, cut from H431205 bulk strip, hydraulic oil reservoir and battery box cover

4шт.

10

120515A1

DECAL

- Maintenance schedule

1шт.

11

321-230

DECAL

- Diesel fuel

1шт.

12

H433813

DECAL

- 4 wheel steer, brown, if used

1шт.

12

179076A1

DECAL

- 4 wheel steer, gray, if used

1шт.

13

H438325

DECAL

- Side console, attachments, rear wheel positioner and rear wheel position indicator, brown, models with 4 wheel steer, if used

1шт.

13

178944A1

DECAL

- Side console, attachments, rear wheel positioner and rear wheel position indicator, gray, models with 4 wheel steer, if used

1шт.

H431205

ADHESIVE STRIP

STRIP - Anti-skid, bulk, 635 mm (25 inch) long

1шт.
