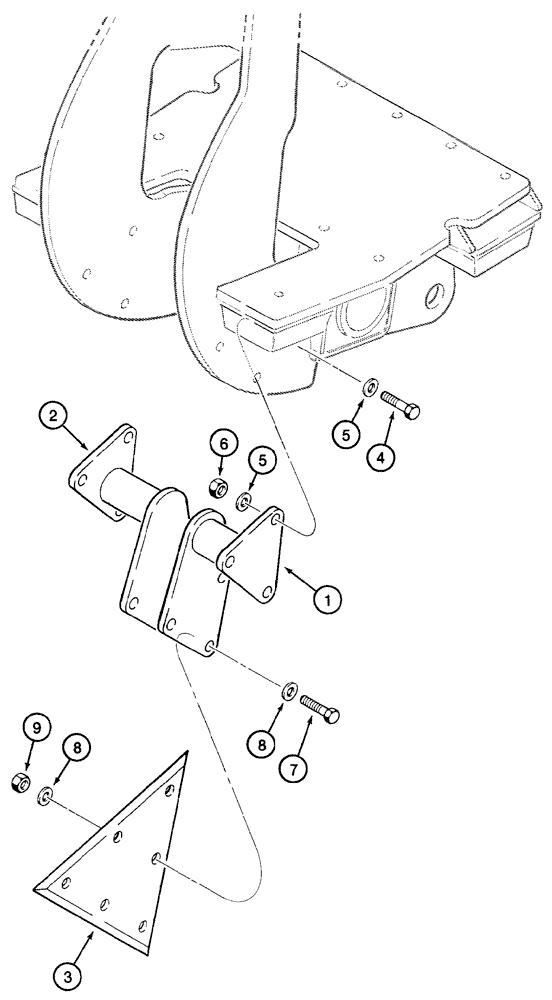

Запчасти Case 460 (9-99B) - SOD CUTTER (09) - CHASSIS/ATTACHMENTS

1

128637A1

BRACKET

- mounting, right-hand, sod cutter blade, see figure 9-98, Ref. 1, for plow blade mounting frame

1шт.

2

128638A1

BRACKET

- mounting, left-hand, sod cutter blade

1шт.

3

H434907

HALF BLADE

BLADE - sod cutter

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

5

H274894

WASHER

- flat, special

12шт.

6

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

8

H274894

WASHER

- flat, special

6шт.

9

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.
