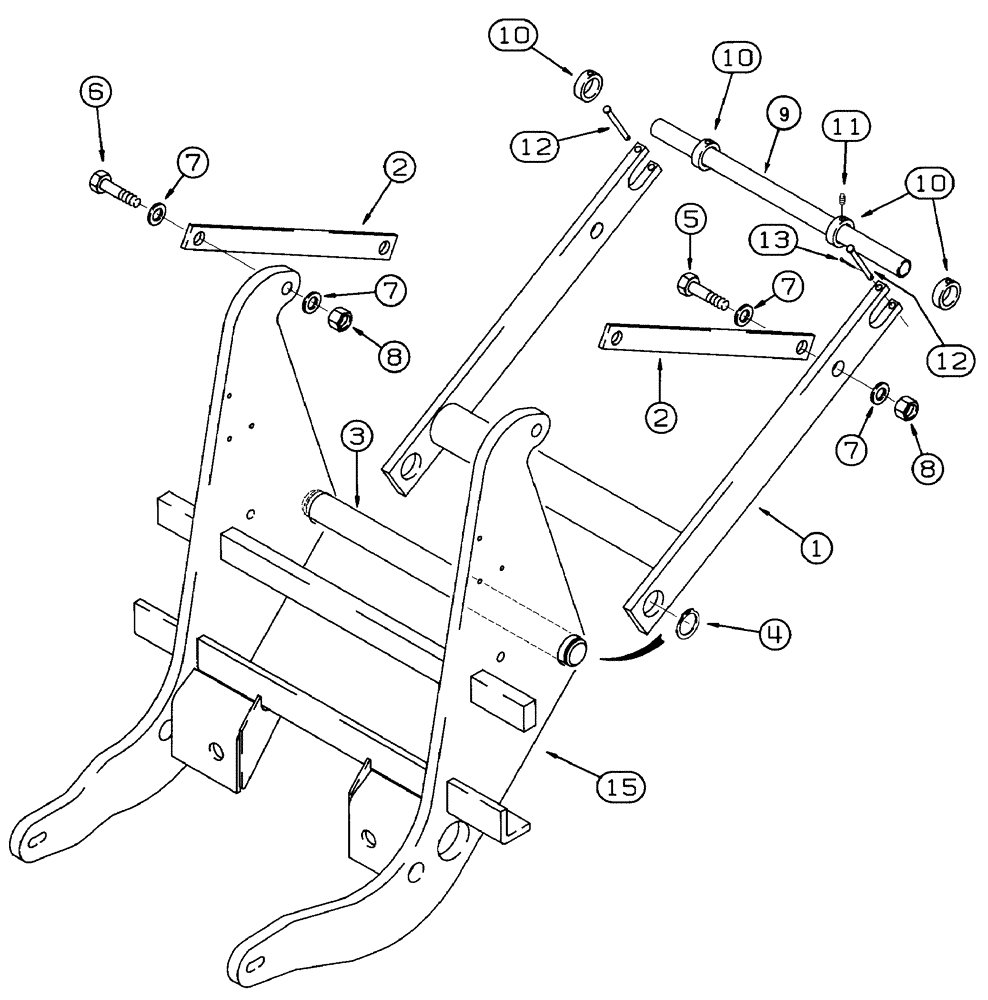

Запчасти Case 460 (9-99A) - REEL CARRIER (09) - CHASSIS/ATTACHMENTS

1

131218A1

CHASSIS

FRAME - reel carrier

1шт.

2

131221A1

LINK

- reel carrier to mounting frame, to mounting frame

2шт.

3

131222A1

PIN

- reel carrier to mounting frame

1шт.

4

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

5

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

2шт.

6

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

8шт.

8

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

4шт.

9

H350363

PIPE

- reel carrier

1шт.

10

H350355

COLLAR

- stop, reel carrier

4шт.

11

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point

4шт.

12

H230243

CLEVIS COUPLING

PIN - clevis, 3/8 x 3-5/8 inch

2шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

14

131647A1

DECAL

- Important, reel weight rating (300 lb), not shown, see figure 9-108 for decals

2шт.

15

113154A1

CHASSIS

FRAME - mounting, counterweight and reel carrier mounting, see figure 9-10 for mounting hardware

1шт.
