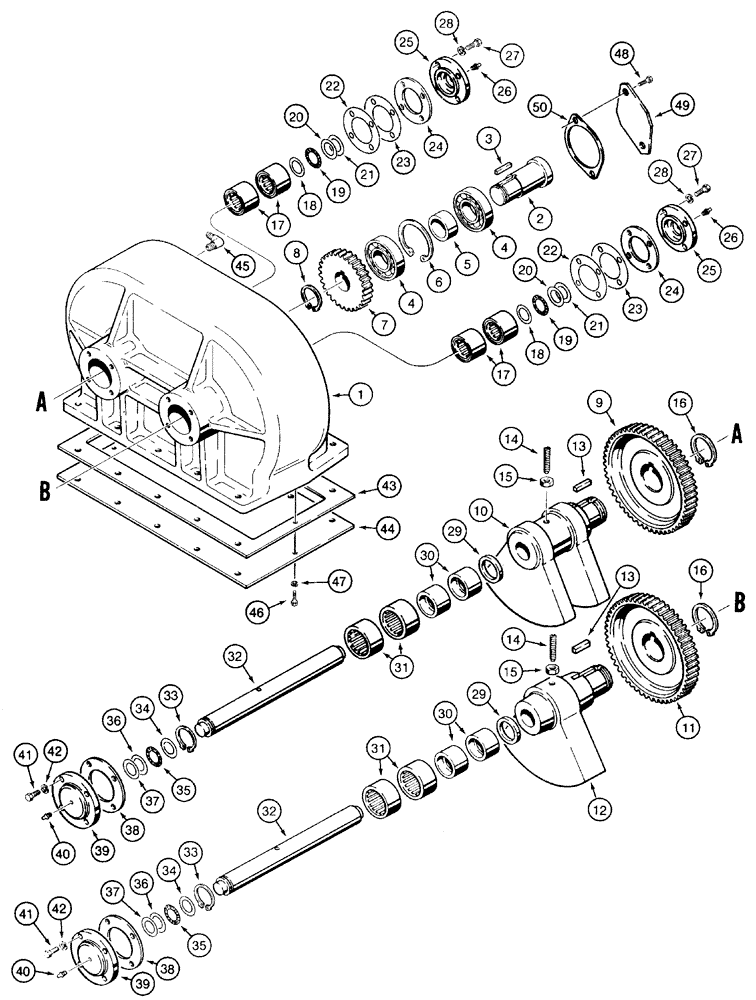

Запчасти Case 460 (9-99) - PLOW GEARBOX ASSEMBLY, H563619, P75 PLOW (09) - CHASSIS/ATTACHMENTS

H563619

BOX

GEARBOX ASSEMBLY - plow, Case manufactured, includes: Refs. 1 - 50

1шт.

1

H205559

CASE

HOUSING - gearbox

1шт.

2

H205567

SHAFT

- drive, gearbox

1шт.

3

H380030

KEY

- square, 1/4 x 1-3/8 inch

1шт.

4

H753194

BEARING

- drive shaft

2шт.

5

H189795

SPACER

- bearing

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Brg and shaft 3.156", Int, #315

1шт.

7

H189787

GEAR

- drive

1шт.

8

100-11150

SNAP RING,#150, Ext

Ring, Snap, , gear #150, Ext

1шт.

9

H189753

GEAR

- driven, counterweight shaft, left-hand, counterweight shaft

1шт.

10

H189514

WEIGHT

COUNTERWEIGHT - gearbox, left-hand, left-hand

1шт.

11

H189746

GEAR WHEEL

GEAR - driven, counterweight shaft, right-hand, counterweight shaft

1шт.

12

H189506

WEIGHT

COUNTERWEIGHT - gearbox, right-hand, right-hand

1шт.

13

H380030

KEY

- square, 1/4 x 1-3/8 inch

2шт.

14

83-65032

SET SCREW,Hex Soc, 1/2"-13 x 2"

SCREW - set, hex socket headless, 1/2 NC x 2 inch, half dog point

2шт.

15

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

16

103-11225

SNAP RING,#225, Ext

Ring, Snap, , Gear #225, Ext

2шт.

17

H753145

NEEDLE BEARING

BEARING - counterweight shaft, front

4шт.

18

G46081

BEARING WASHER

WASHER - thrust, 0.81 mm (0.032 inch) thick, shaft bearing

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller, Shaft end

2шт.

20

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust, 2.41 mm (0.095 inch) thick

1шт.

21

G46081

BEARING WASHER

WASHER - thrust, 0.81 mm (0.032 inch) thick

1шт.

22

H189878

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

23

H189886

SHIM,.015" Thk

(0.38 mm) .015" Thk

1шт.

24

H189860

GASKET

- 89 x 52 x 0.8 mm, shaft end cover, front

2шт.

25

135587A1

BEARING CAP,28.6 mm ID x 88.9 mm OD x 19 mm

- bearing end, front

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

29

H189803

SPACER

- 49 x 39 x 5 mm

2шт.

30

H753160

BEARING CUP

RACE - bearing, inner

4шт.

31

111980R91

NEEDLE BEARING

BEARING - counterweight shaft, rear

4шт.

32

H189761

SHAFT

- counterweight, counterweight

2шт.

33

100-11150

SNAP RING,#150, Ext

Ring, Snap, , shaft #150, Ext

2шт.

34

G46081

BEARING WASHER

WASHER - thrust, 0.81 mm (0.032 inch) thick

2шт.

35

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Roller, Shaft end

2шт.

36

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust, 2.41 mm (0.095 inch) thick

1шт.

37

G46081

BEARING WASHER

WASHER - thrust, 0.81 mm (0.032 inch) thick

1шт.

38

H189852

GASKET

- 111 x 65 x 0.8 mm, rear

2шт.

39

H189811

BEARING CAP

CAP - bearing end, rear

2шт.

40

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

H189910

GASKET

- 273 x 483 x 0.8 mm, housing bottom

1шт.

44

H202176

LARGE PLATE

PLATE - cover, housing bottom

1шт.

45

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

46

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

47

492-11038

LOCK WASHER,3/8"

2шт.

48

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Discard and use plow motor mounting hardware shown on Figure 9-98 Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

49

H137844

LARGE PLATE

PLATE - cover, discard to mount plow motor

1шт.

50

H44727

GASKET

- 124 x 146 x 0.8 mm, motor

1шт.
