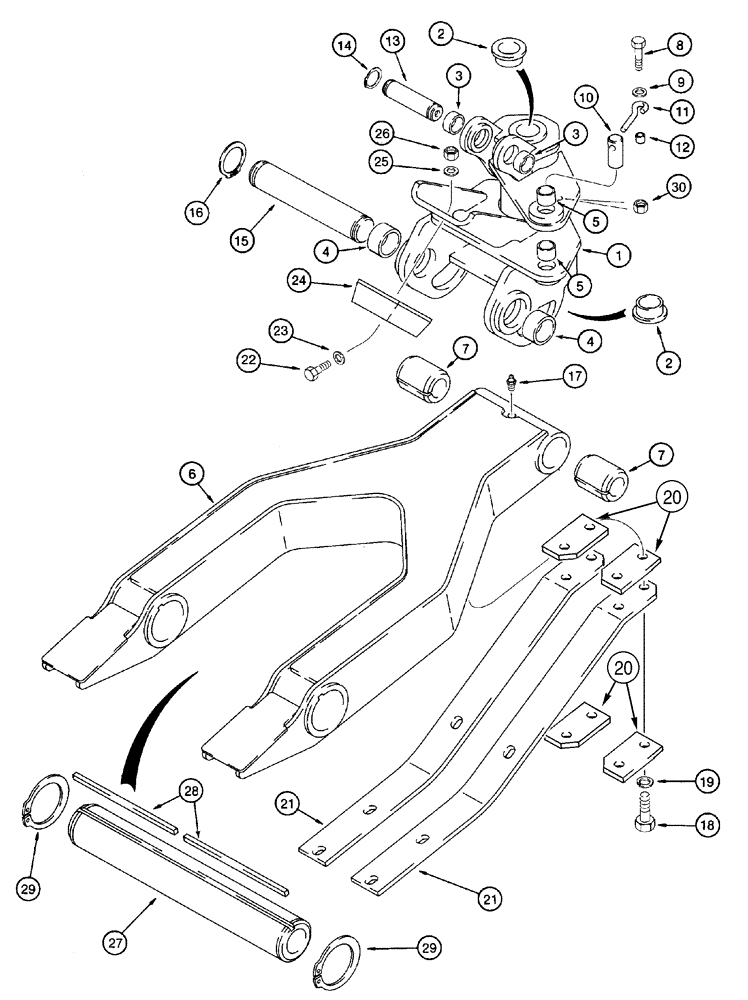

Запчасти Case 460 (9-96) - PLOW SWING TOWER, LOWER LINK AND SKID SHOES, P75 PLOW (09) - CHASSIS/ATTACHMENTS

1

120718A1

PIVOT

TOWER - plow swing, includes: Refs. 2 - 5

1шт.

2

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

- plow swing tower, center pivot

2шт.

3

D36333

BUSHING,31.98mm ID x 41.27mm OD x 22.1mm L

- plow swing tower, upper pivot

2шт.

4

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- 25 mm (1 inch) long, plow swing tower, lower pivot

2шт.

5

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm, 25 mm (1 inch) ID, plow swing tower, swing cylinder pivot

2шт.

6

120729A1

LINK

ARM - plow lift, includes: Ref. 7

1шт.

7

H434904

BUSHING

- plow lift arm

2шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

9

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

10

127396A1

PIVOT PIN

PIN - pivot

2шт.

11

H313981

PIN

- retaining

2шт.

12

H53959

SPACER

- 13 mm (1/2 inch) long

2шт.

13

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - pivot, swing tower, small

1шт.

14

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

15

D45523

PIN,50.8mm OD x 276.35mm L

- pivot, 10-7/8 inch long, swing tower, large

1шт.

16

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

17

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch

1шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

367436A1

PLATE

- skid shoe support

4шт.

21

127336A1

SPRING

SHOE - skid, plow

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

24

D90990

GUARD

BUMPER - rubber, plow stop

1шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

26

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

27

120745A1

PIN

- pivot, rear

1шт.

28

120746A1

KEY

- square, 9.5 x 250 mm, plow pivot pin, rear

2шт.

29

103-11300

SNAP RING,#300, Ext

Ring, Snap, , Rear plow pivot pin #300, Ext

2шт.

30

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.
