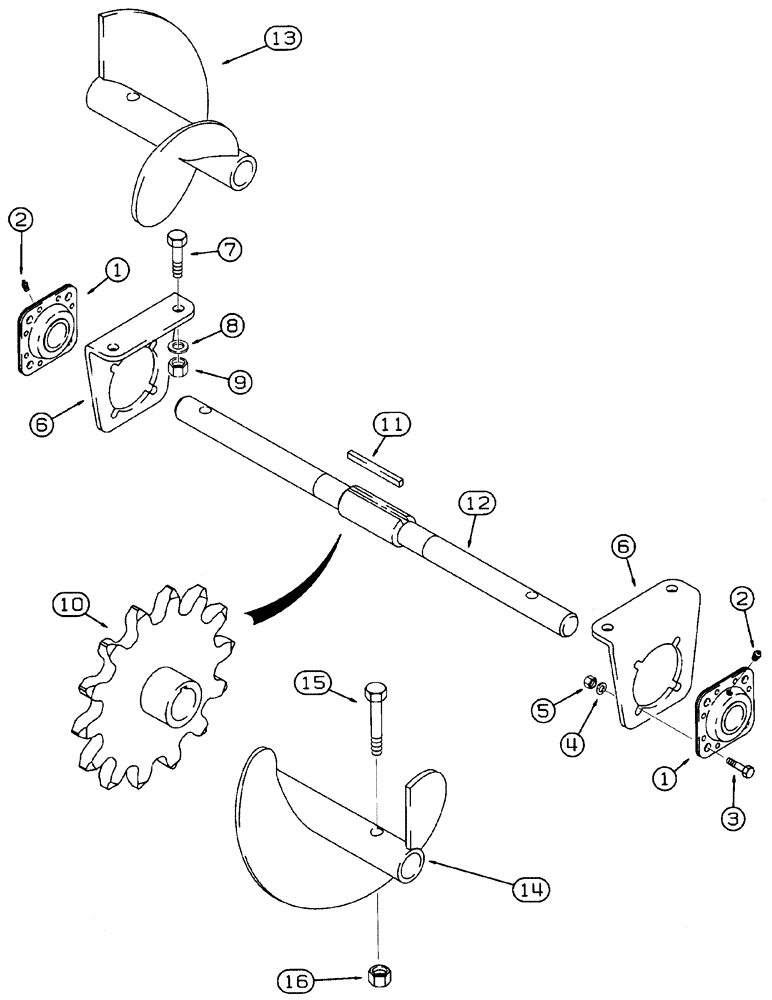

Запчасти Case 460 (9-74) - AUGER AND MOUNTING, PLANETARY DRIVE TRENCHER (09) - CHASSIS/ATTACHMENTS

1

ST491A

BALL BEARING,45mm ID

BEARING - flange, auger, includes: Ref. 2

2шт.

1

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

4

H274894

WASHER

- flat, special

8шт.

5

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

8шт.

6

108699A1

PLATE

- mounting, auger bearing

2шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

8

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

4шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

126170A1

SPROCKET ASSY.

SPROCKET - auger drive, 14 teeth

1шт.

11

H433528

KEY

- shaft

1шт.

12

108700A1

SHAFT

- auger

1шт.

13

108704A1

AUGER

- spoil removal, left-hand

1шт.

14

108705A1

AUGER

- spoil removal, right-hand

1шт.

15

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, grade 8

2шт.

16

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.
