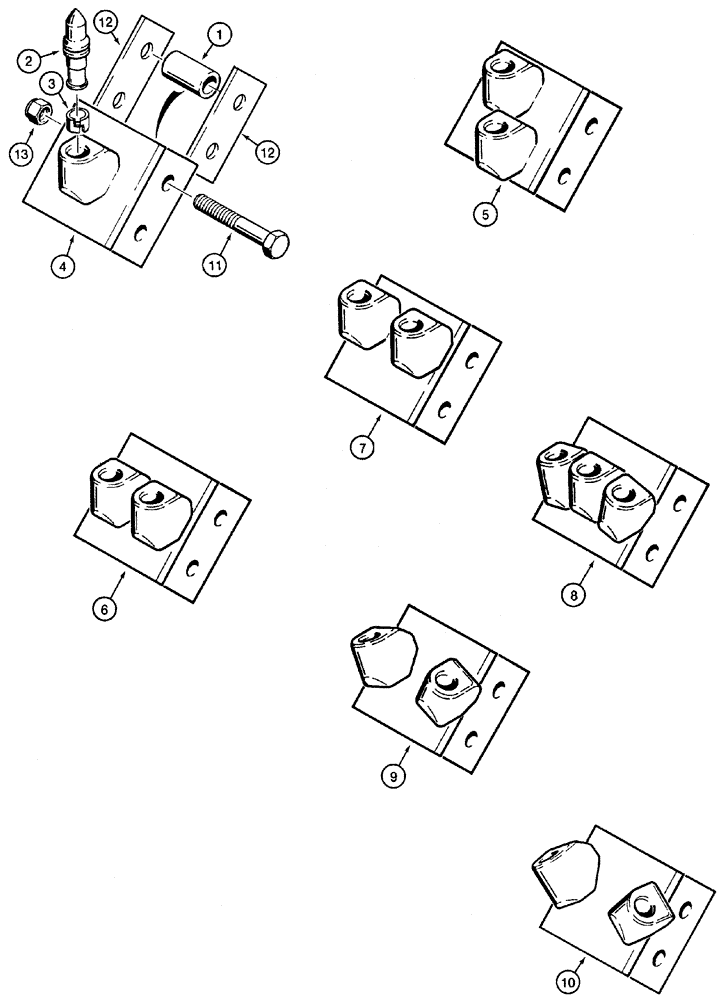

Запчасти Case 460 (9-72) - ROCK AND FROST DIGGING TEETH, USED WITH 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

102259A1

SPACER

- tubular, 1 x 1-29/32 inch

1шт.

2

H270983

TOOTH

BIT - cutter, standard tip, C-1 bit

1шт.

2

H283770

TOOTH

BIT - cutter, heavy-duty tip, C-3 bit, includes: Ref. 3

1шт.

3

H283754

CLIP

- bit retaining, included with H270983 and H283770 cutter bits

1шт.

4

H595223

BRACKET

- cutter bit, single

1шт.

5

H595231

BRACKET

- cutter bit, 25 mm (1 inch) bit spacing

1шт.

6

H595249

BRACKET

- cutter bit, 51 mm (2 inch) bit spacing

1шт.

7

H595256

BRACKET

- cutter bit, 76 mm (3 inch) bit spacing

1шт.

8

H595264

BRACKET

- cutter bit, 102 mm (4 inch) bit spacing

1шт.

9

H595272

BRACKET

- cutter bit, 127 mm (5 inch) bit spacing

1шт.

10

H595280

BRACKET

- cutter bit, 152 mm (6 inch) bit spacing

1шт.

11

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

12

102701A1

SPACER

- flat

1шт.

13

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.
