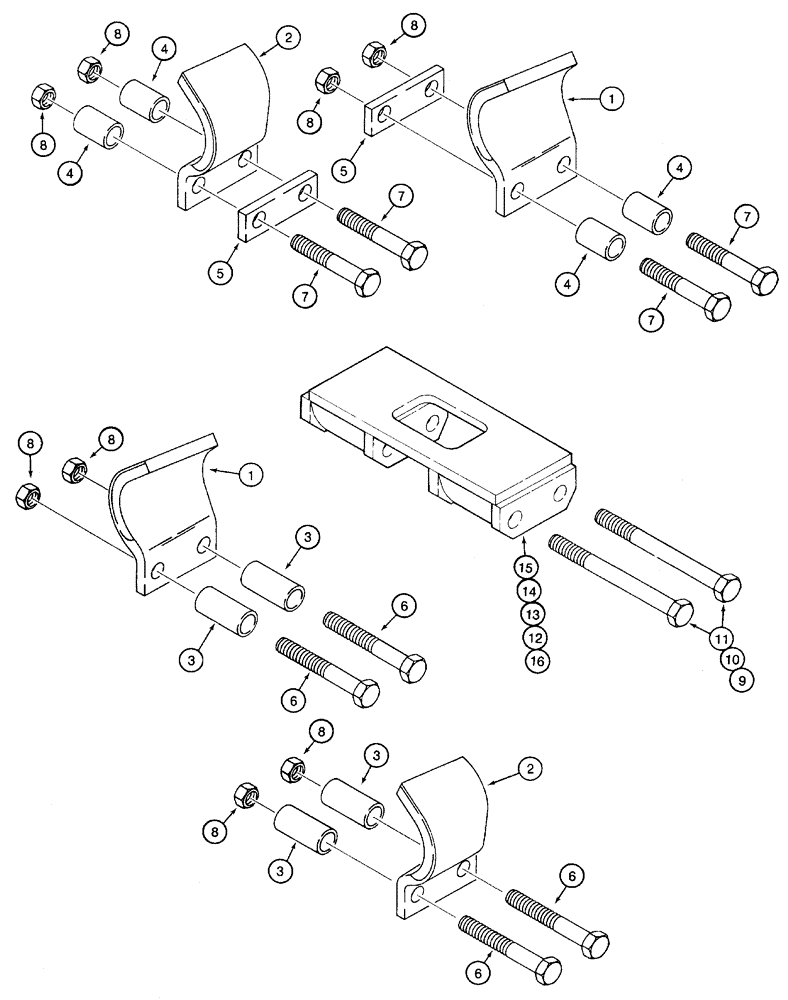

Запчасти Case 460 (9-68) - LARGE CUPPED DIGGING TEETH, USED WITH 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H251371

TOOTH

- digging, right-hand

1шт.

2

H251389

TOOTH

- digging, left-hand

1шт.

3

102259A1

SPACER

- tubular, 1 x 1-29/32 inch

1шт.

4

102260A1

SPACER

- tubular, 1 x 1-7/32 inch

1шт.

5

H138990

SPACER

- flat, 5/16 x 1-1/8 x 3-1/2 inch

1шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

7

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

9

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

10

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

11

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

1шт.

12

122075A1

BRACKET

- 10 inch tooth mounting

1шт.

13

122076A1

BRACKET

- 12 inch tooth mounting

1шт.

14

122077A1

BRACKET

- 14 inch tooth mounting

1шт.

15

122078A1

BRACKET

- 16 inch tooth mounting

1шт.
