(9-66) - MEDIUM CUPPED DIGGING TEETH, USED WITH 75,000 POUND CHAINLINE

Запчасти Case 460 (9-66) - MEDIUM CUPPED DIGGING TEETH, USED WITH 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

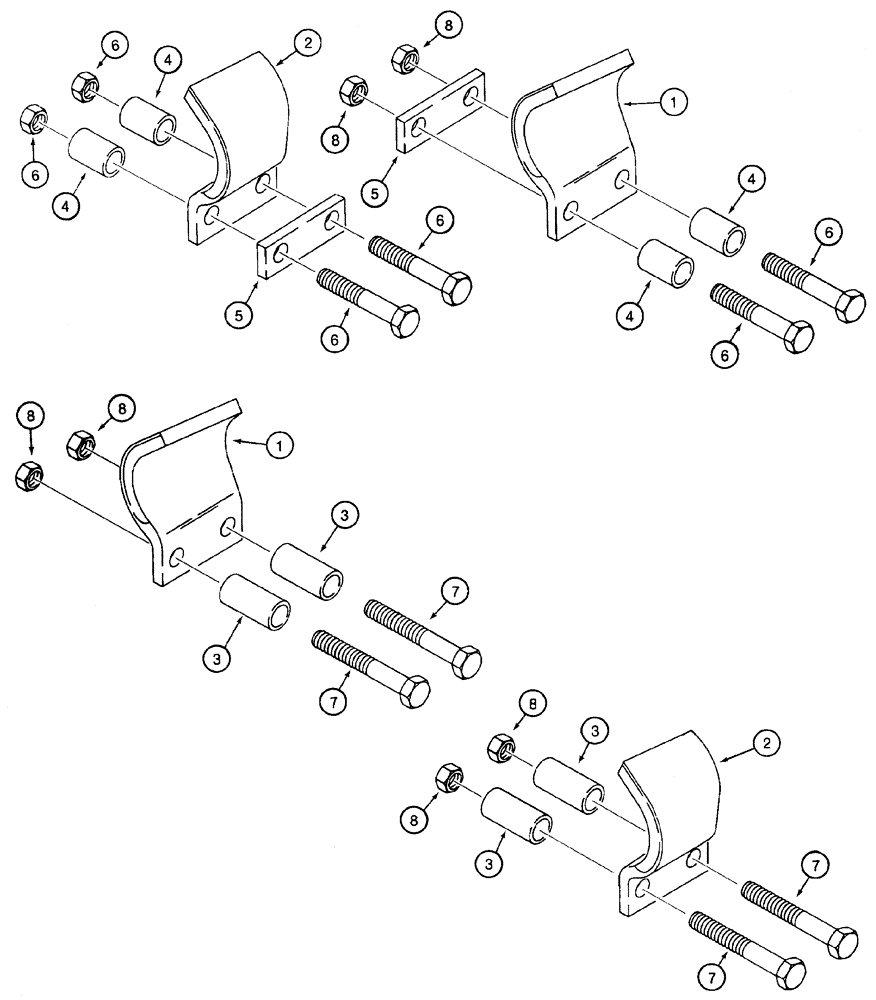

Схема запчастей Case 460 - (9-66) - MEDIUM CUPPED DIGGING TEETH, USED WITH 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS
6
6
5
7
6
4
6
4
2
3
8
6
4
8
1
8
4
3
7
3
5
2
8
6
8
1
7
3
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H131276

TOOTH

- digging, left-hand

1шт.

2

H131268

TOOTH

- digging, right-hand

1шт.

3

102259A1

SPACER

- tubular, 1 x 1-29/32 inch

1шт.

4

102700A1

SPACER

- tubular, 1 x 1-13/32 inch

1шт.

5

102701A1

SPACER

- flat

1шт.

6

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

7

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.
