(9-64) - STANDARD DIGGING TEETH, USED WITH 50,000 POUND CHAINLINE

Запчасти Case 460 (9-64) - STANDARD DIGGING TEETH, USED WITH 50,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

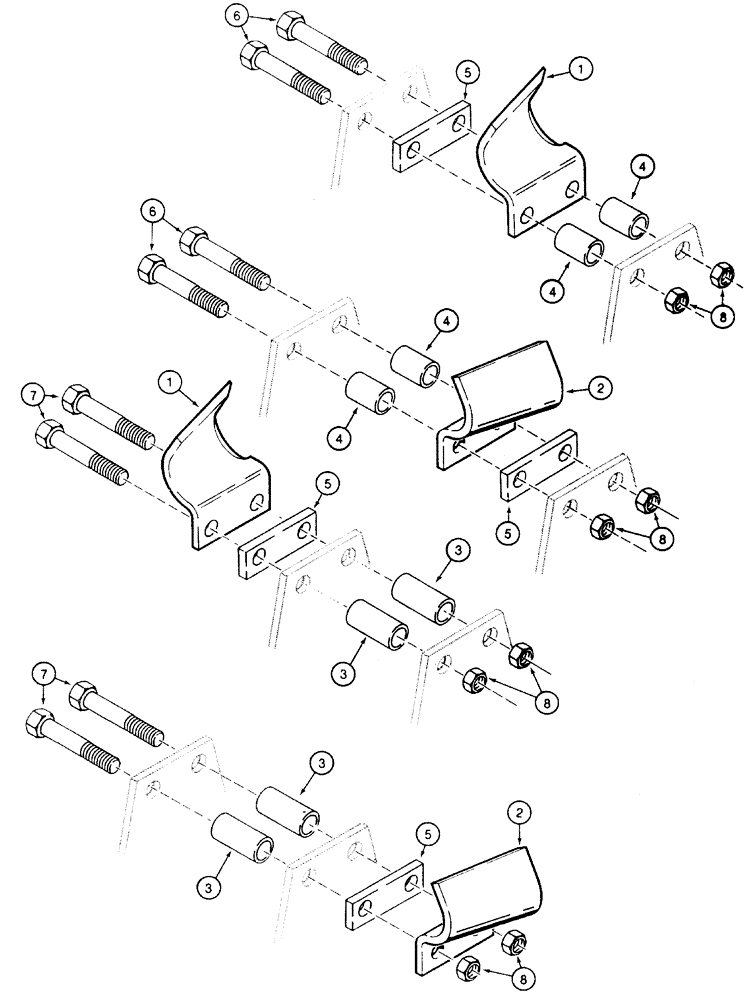

Схема запчастей Case 460 - (9-64) - STANDARD DIGGING TEETH, USED WITH 50,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS
1
3
7
6
4
6
3
2
3
5
1
8
5
4
5
4
4
2
8
5
3
7
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H131276

TOOTH

- digging, left-hand

1шт.

2

H131268

TOOTH

- digging, right-hand

1шт.

3

H138008

SPACER

- tubular, 1 x 1-25/32 inch

1шт.

4

H138016

SPACER

- tubular, 1 x 1-9/32 inch

1шт.

5

102701A1

SPACER

- flat

1шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

8

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.
