(9-62) - ANTI-BACKFLEX DIGGING CHAINS, 75,000 POUND CHAINLINE

Запчасти Case 460 (9-62) - ANTI-BACKFLEX DIGGING CHAINS, 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS

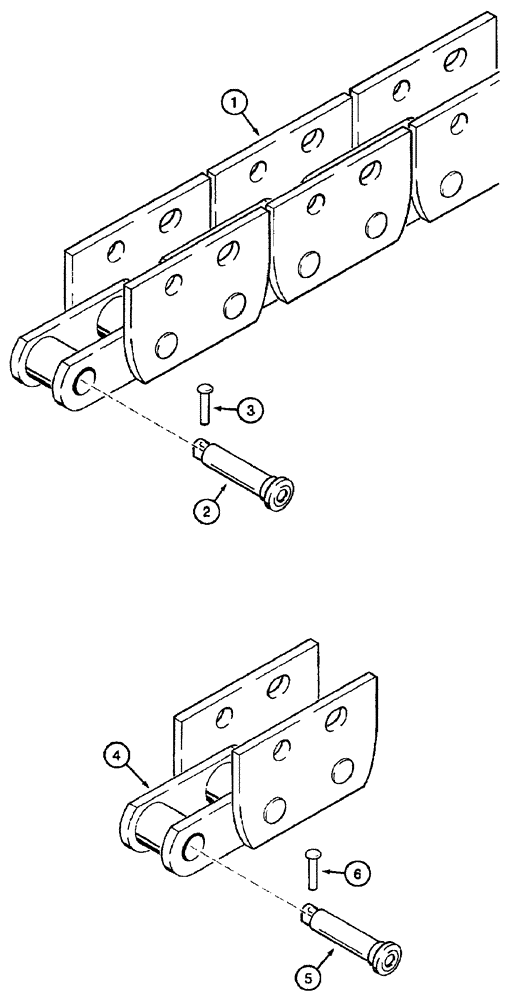

Схема запчастей Case 460 - (9-62) - ANTI-BACKFLEX DIGGING CHAINS, 75,000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS
4
3
5
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Anti-Backflex Digging Chain

1шт.

5 foot digging depth boom - Direct drive trenchers

1шт.

133302A1

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 58 pitches, includes: Refs. 1 - 3

1шт.

1

126113A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 58 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

111501A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 70 pitches, includes: Refs. 1 - 3

1шт.

1

117312A1

CHAIN (AG)

CHAIN - digging, anti-backflex, 70 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

133302A1

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 58 pitches, includes: Refs. 1 - 3

1шт.

1

126113A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 58 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

H939322

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 10 pitches, includes: Refs. 1 - 3

1шт.

1

102046A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

Anti-Backflex Digging Chain

1шт.

5 foot digging depth boom - Planetary drive trenchers

1шт.

111501A1

CHAIN (CE)

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 70 pitches, includes: Refs. 1 - 3

1шт.

1

117312A1

CHAIN (AG)

CHAIN - digging, anti-backflex, 70 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

H939322

CHAIN ASSEMBLY - digging, anti-backflex, not available for service, order individual components, 10 pitches, includes: Refs. 1 - 3

1шт.

1

102046A1

CHAIN (AG)

CHAIN ASSEMBLY - digging, anti-backflex, 10 pitches

1шт.

2

102501A1

PIN

- connector

1шт.

3

H297655

AXLE PIN

PIN - pin retaining, chain

1шт.

102047A1

CHAIN (CE)

CHAIN ASSEMBLY - repair section, 2 pitches, includes: Refs. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CHAIN - repair section, 2 pitches

1шт.

5

102501A1

PIN

- connector

2шт.

6

H297655

AXLE PIN

PIN - pin retaining

2шт.
