Запчасти Case 460 (9-58) - TRENCHER BOOM AND MOUNTING, PLANETARY DRIVE TRENCHER, ROCK BOOM, FIVE FOOT (09) - CHASSIS/ATTACHMENTS

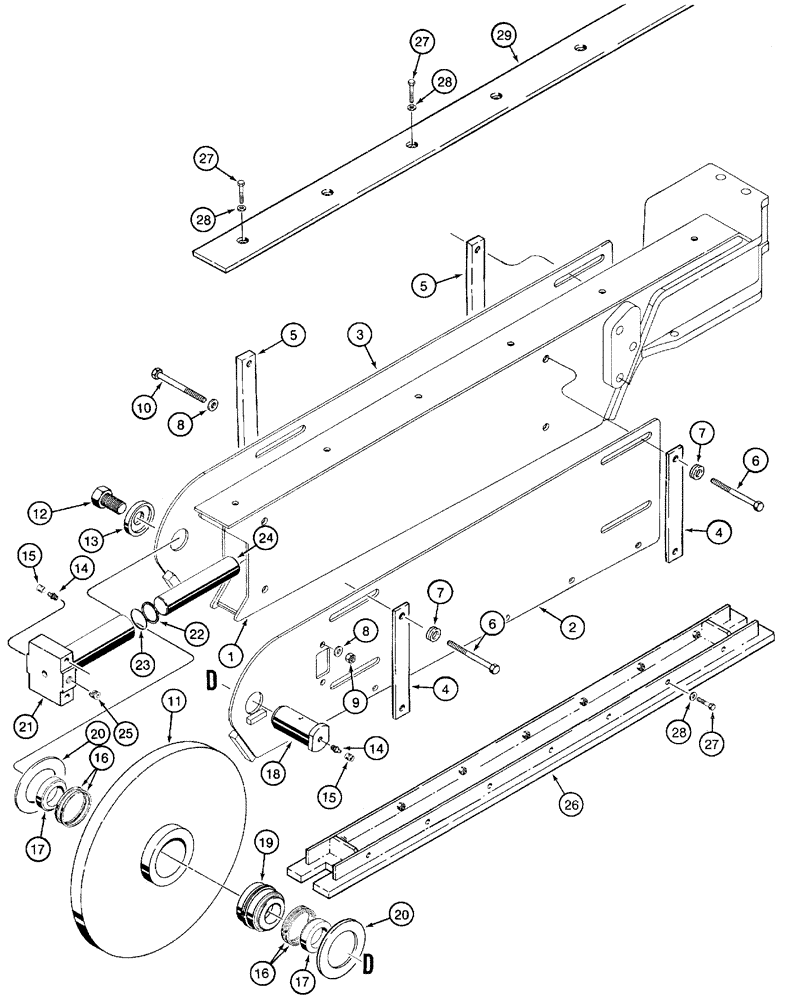

Схема запчастей Case 460 - (9-58) - TRENCHER BOOM AND MOUNTING, PLANETARY DRIVE TRENCHER, ROCK BOOM, FIVE FOOT (09) - CHASSIS/ATTACHMENTS
8
28
28
18
17
27
26
16
11
20
24
27
1
8
16
27
10
4
5
17
2
6
21
3
14
23
6
25
4
5
13
12
28
9
20
7
19
15
15
14
29
22
7

Артикул

Название

Примечание

Количество

1

112356A1

BOOM

- trencher, 5 foot, planetary drive trencher

1шт.

2

112665A1

PLATE

- rock boom end, right-hand

1шт.

3

121502A1

PLATE

- rock boom end, left-hand

1шт.

4

101563A1

BAR

- clamp, boom end plate retaining

2шт.

5

101562A1

BAR

- threaded, boom end plate retaining

2шт.

6

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

7

H434670

LOCK WASHER

- disc locking, special

4шт.

8

H274894

WASHER

- flat, special

4шт.

9

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

10

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

2шт.

11

H675070

ROLLER

- rock boom end

1шт.

12

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

13

139027A1

WASHER,19.45mm ID x 76.2mm OD x 13mm Thk

- flat, special, pin retaining

1шт.

14

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch, includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - grease fitting

1шт.

16

H435218

SEAL

- boom end roller

4шт.

17

H438569

SPACER

- seal, rock boom end

2шт.

18

H438570

PIN,63.5mm OD x 104.5mm L

- boom end roller

1шт.

19

H759118

BEARING ASSY,52.4mm ID x 92.1mm OD x 54.75mm W

BEARING - tapered roller

1шт.

20

H435229

WASHER,80.2mm ID x 140mm OD x 1.58mm Thk

- flat, special, boom end roller

2шт.

21

H674743

CYLINDER ASSY.,44.46mm Bore Dia

ADJUSTER - chain, rock boom

1шт.

22

H755009

RING

- backup, adjuster O-ring

1шт.

23

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

24

H434551

ROD

- adjuster

1шт.

25

H114728

PLUG

- hex socket, 3/8 inch PT, grease bleed

1шт.

26

101570A1

CHANNEL

- wear pad, lower

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

16шт.

29

112357A1

BAR

PAD - wear, upper

1шт.

Выбрано товаров: 29
