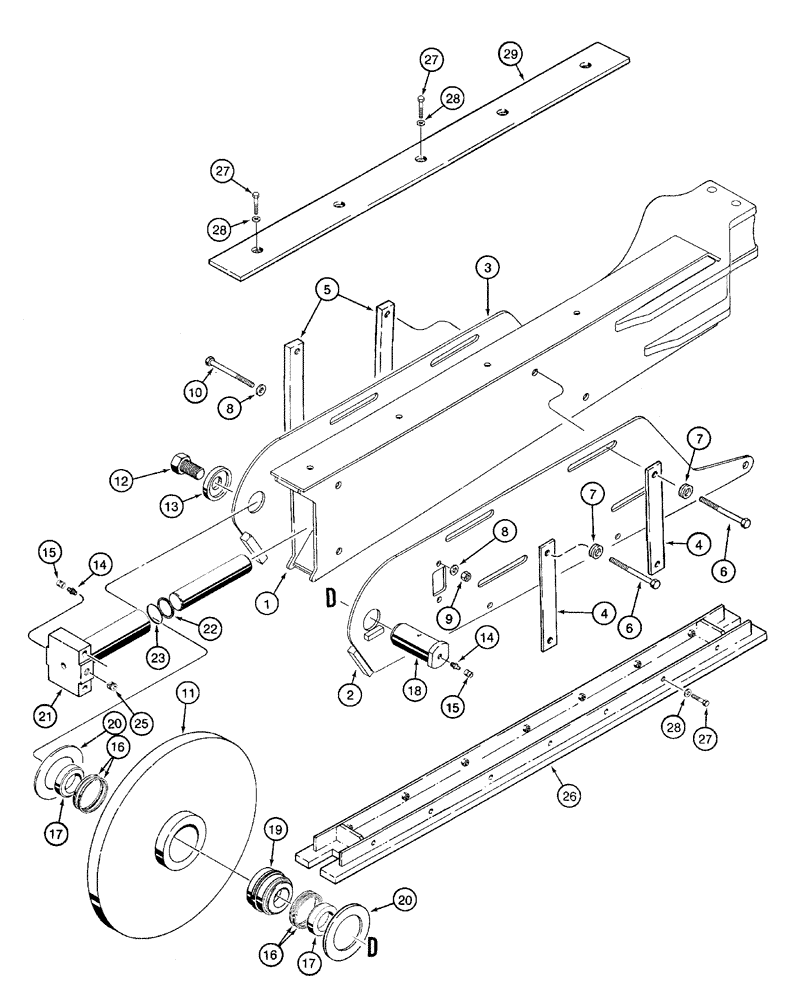

Запчасти Case 460 (9-55C) - TRENCHER BOOM AND MOUNTING, DIRECT DRIVE TRENCHER, ROCK BOOM, 5 FOOT, 50000 & 75000 POUND CHAINLINE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
123860A1
BOOM
- rock, 5 foot, direct drive trencher
1шт.
2
123874A1
PLATE
- rock boom end, right-hand
1шт.
3
123873A1
PLATE
- rock boom end, left hand
1шт.
4
101563A1
BAR
- clamp, boom end plate retaining
2шт.
5
101562A1
BAR
- threaded, boom end plate retaining
2шт.
6
413-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
4шт.
7
H434670
LOCK WASHER
- disc locking, special
4шт.
8
H274894
WASHER
- flat, special
4шт.
9
232-4118
NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
2шт.
10
413-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
- hex, 1/2 NC x 4-1/4 inch
2шт.
11
H675070
ROLLER
- rock boom end
1шт.
12
413-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
- hex, 3/4 NC x 1-1/2 inch
1шт.
13
139027A1
WASHER,19.45mm ID x 76.2mm OD x 13mm Thk
- flat, special
1шт.
14
219-66
LUBE NIPPLE,1/8"-27 NPT, Dustproof
FITTING - grease, straight, with cap, 1/8 PT x 1 inch, includes: Ref. 15
1шт.
15
NSS
NOT SOLD SEPARAT
CAP - grease fitting
1шт.
16
H435218
SEAL
- boom end roller
4шт.
17
H438569
SPACER
- seal, rock boom end
2шт.
18
H438570
PIN,63.5mm OD x 104.5mm L
- boom end roller
1шт.
19
H759118
BEARING ASSY,52.4mm ID x 92.1mm OD x 54.75mm W
BEARING - tapered roller
1шт.
20
H435229
WASHER,80.2mm ID x 140mm OD x 1.58mm Thk
- flat, special, boom end roller
2шт.
21
H674743
CYLINDER ASSY.,44.46mm Bore Dia
ADJUSTER - chain, rock boom
1шт.
22
H755009
RING
- backup, adjuster O-ring
1шт.
23
238-6327
O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro
1шт.
24
H434551
ROD
- adjuster
1шт.
25
H114728
PLUG
- hex socket, 3/8 inch PT, grease bleed
1шт.
26
101570A1
CHANNEL
- wear pad, lower
1шт.
27
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
15шт.
28
496-21041
WASHER,13/32" x 13/16" x .089", HDN
- flat, 13/32 x 13/16 x 3/32", hardened
15шт.
29
117591A1
BAR
PAD - wear, upper
1шт.
Выбрано товаров: 29
