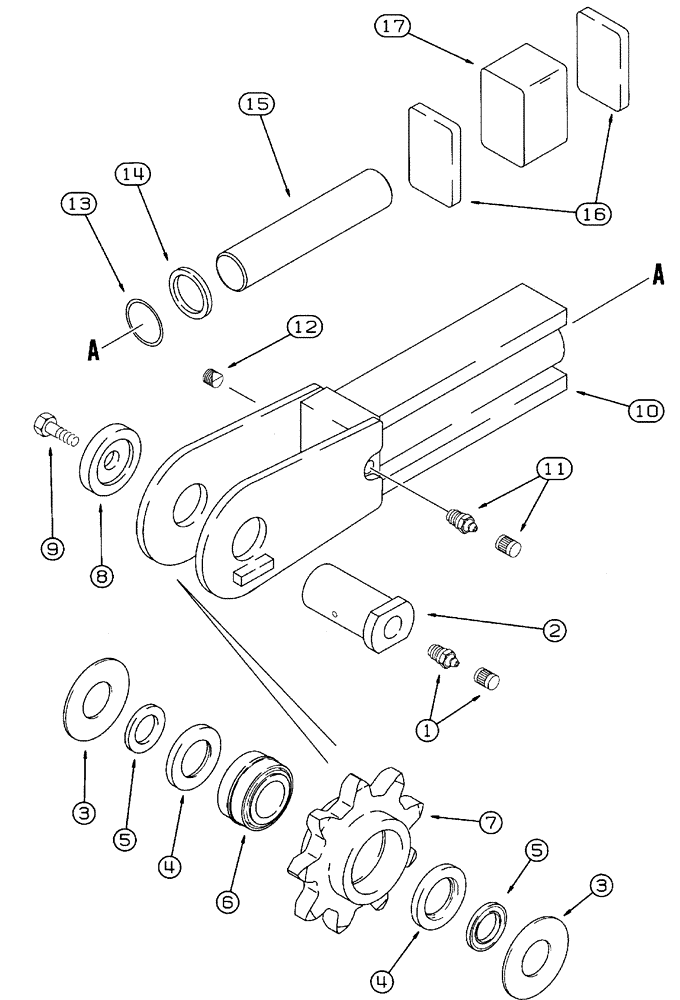

Запчасти Case 460 (9-54) - TRENCHER BOOM END AND SPROCKET, LATE PRODUCTION, STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

1

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

2

140371A1

PIN

- boom end sprocket

1шт.

3

H435229

WASHER,80.2mm ID x 140mm OD x 1.58mm Thk

- flat, special, boom end sprocket

2шт.

4

H435218

SEAL

- boom end sprocket

4шт.

5

H438569

SPACER

- bearing

2шт.

6

H759118

BEARING ASSY,52.4mm ID x 92.1mm OD x 54.75mm W

BEARING - tapered roller, idler sprocket

1шт.

7

139796A1

SPROCKET ASSY.

SPROCKET - boom end

1шт.

8

139027A1

WASHER,19.45mm ID x 76.2mm OD x 13mm Thk

- flat, special, pin retaining

1шт.

9

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

10

139792A2

END

- boom

1шт.

11

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

12

H114728

PLUG

- hex socket, 3/8 inch PT

1шт.

13

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

Boom end rod -327, 90 Duro, 1.725" ID x .210" Thk

1шт.

14

H755009

RING

- backup, boom end rod O-ring

1шт.

15

H434551

ROD

- adjuster, cylinder

1шт.

16

135193A1

LARGE PLATE

PLATE - cushion

2шт.

17

135194A1

BLOCK

- cushion, boom end

1шт.
